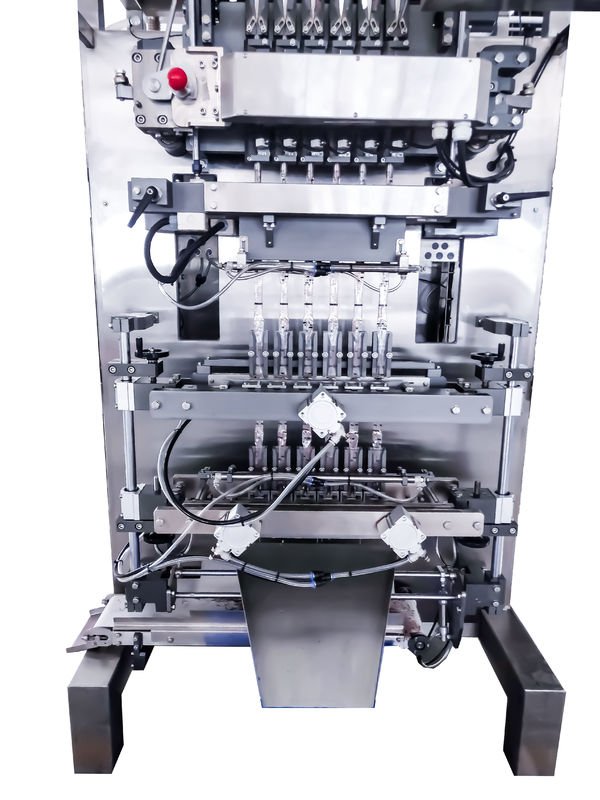

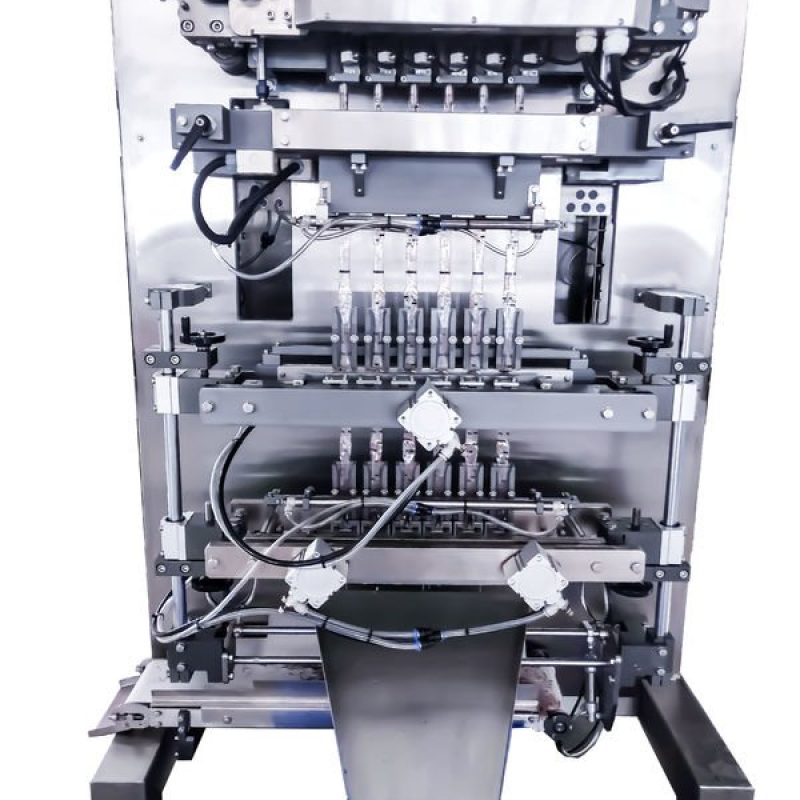

The MAX 600mm Pouch Packing Machine is a high-efficiency, fully automated bag forming, filling, and sealing system engineered for continuous production of small-dose sachets. Designed primarily for powder products and adaptable to selected liquid applications, it integrates stable film feeding, accurate dosing coordination, and consistent heat sealing to deliver repeatable package quality at scale. With a robust mechanical structure and industrial-grade control architecture, the machine helps manufacturers increase throughput, reduce labor dependency, and maintain clean, professional-looking seals across multi-lane output.
Product Introduction
Built around a MAX 600 mm forming platform, this pouch packing machine produces compact pouches with controlled dimensions and reliable seam integrity. The system supports composite packaging films such as BOPP/PE and is configured for 4–12 lanes (columns), depending on pouch size. Its bag pulling and sealing motions are synchronized through an encoder-controlled motor crank heat-sealing traction mechanism, improving registration stability and minimizing film deviation during long production runs. For products requiring enhanced edge closure strength, a twisted-edge adhesive sealing structure is used to reinforce the seal area and improve package security. Parts that contact product are manufactured in Stainless Steel 304 to support hygiene compliance, corrosion resistance, and fast sanitation between batches.
Product Features
Stable multi-lane pouch forming for high-speed output. The machine is designed for multi-column sachet production (4–12 columns), enabling efficient output per cycle while maintaining consistent pouch geometry and repeatability.
Clean, strong horizontal seals with consistent appearance. The 8–10 mm horizontal sealing area features a single-sided diagonal mesh pattern with 1 mm spacing, creating a firm seal profile while improving visual uniformity from pouch to pouch.
Encoder-synchronized traction to reduce misalignment. The motor crank type heat-sealing bag pulling system works with encoder control to coordinate film feeding and sealing action, helping reduce tracking errors, seal skew, and length variation under continuous operation.
Twisted-edge adhesive sealing for enhanced closure integrity. The twisted-edge sealing design supports improved edge security, helping reduce risks of edge lifting during transportation, storage, or end-user handling.
Optional leak-proof line for compatible liquid sachets. When configured for liquid packaging, a 1 mm leak-proof line structure can be applied to strengthen sealing resistance against seepage, supporting selected low-dose liquid applications with suitable film structures.
Hygienic material contact design. Stainless Steel 304 is used for product-contact components, helping meet hygiene expectations in food, pharmaceutical, and personal care environments while also simplifying cleaning and maintenance.
Industrial electrical architecture for reliable uptime. Schneider or OMRON electrical components are adopted to support stable control performance, consistent operation, and easier sourcing for maintenance and spare parts.
Independent easy-tear notch device for user-friendly opening. The machine supports point-shaped easy-tear or double easy-tear notch configurations via an independent mechanism, improving consumer experience for single-serve sachets.
Technical Specifications
| Item | Specification |
|---|---|
| Model Positioning | MAX 600mm Pouch Packing Machine / Automated Bag Filling Machine |
| Packaging Capacity | 1–50 ml |
| Packaging Film | Composite packaging materials (e.g., BOPP/PE) |
| Forming Machine | MAX 600 mm (standard with 1 set of bag-making specifications; no flash) |
| Bag Making Range | Bag width: 20–67 mm; Bag length: ≤150 mm or ≤180 mm (choose one) |
| Applicable Columns | 4–12 columns (determined by bag size; bag-width specification cannot be changed) |
| Sealing Method | Twisted edge adhesive sealing |
| Horizontal Sealing Method | AirTAC cylinder horizontal sealing |
| Horizontal Sealing Width | 8–10 mm, single-sided diagonal mesh pattern (1 mm spacing) |
| Horizontal Sealing Leak-Proof Line | 1 mm (only applicable to liquid packaging) |
| Bag Pulling Method | Motor crank type heat-sealing bag pulling (encoder controls sealing action) |
| Measurement Accuracy | ±1% to ±10% (depending on packaging material and fill quantity) |
| Easy-Tear Notch | Point-shaped easy-tear mouth or double easy-tear mouth (independent device) |
| Photoelectric Eye | JULONG |
| Electrical Components | Schneider or OMRON |
| Working Voltage / Power | 380V / 50Hz, single-phase; 10–20 kW (depending on number of trains) |
| Machine Weight | 700 kg |
| Material Contact Parts | Stainless Steel 304 |
| Compressed Air Requirement | 5–6 kg; gas consumption: 2 m³/min |
Application Areas
The MAX 600mm Pouch Packing Machine is ideal for manufacturers producing single-serve sachets and small pouches in the 1–50 ml range where sealing consistency and film transport stability are critical. Typical powder applications include flour-based ingredients, seasonings, beverage premixes, nutritional powders, and other free-flowing or semi-free-flowing powders packaged in compact portions. With compatible composite films and the optional leak-proof line configuration, the system can also support selected small-dose liquid packaging scenarios that require reinforced seal performance. Common industries include food and beverage, pharmaceuticals and nutraceuticals, daily chemical products, personal care and cosmetics sampling, and other consumer or industrial products requiring clean seals, reliable output, and efficient multi-lane production.
