Product Introduction

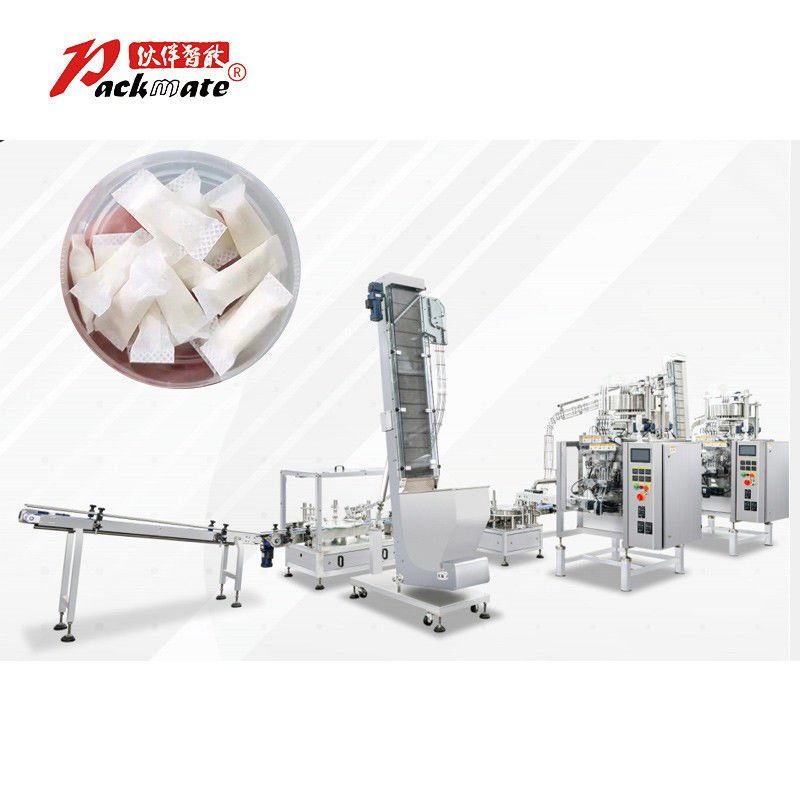

The Pack Mate M180L4-SYB is a fully automatic, high-speed 4-lane snus pouch packaging machine engineered for precise, repeatable dosing of granules and powder-type blends. Built on a stable back-seal forming architecture, it combines pouch forming, portion measuring, filling, heat sealing, and flat cutting into one continuous workflow to deliver uniform pouch appearance and consistent product weight. The integrated PLC control platform with a 7-inch HMI simplifies setup and day-to-day operation, enabling quick parameter adjustment and reliable performance across shifts. With a compact industrial footprint and dual-voltage power compatibility (220V/380V), the M180L4-SYB is designed for manufacturers who need scalable throughput, dependable seal integrity, and efficient production for small-dose snus portion formats.
Product Features
4-Lane Synchronized Production for Higher Output
The 4-lane (4-column) configuration runs multiple pouches in parallel, multiplying output without requiring additional packaging lines or extra floor space. Each lane is designed to maintain stable film tracking, pouch shaping, and cutting consistency, helping producers meet large-volume demand while keeping pouch quality uniform.
Precision Small-Dose Filling with Measuring Cup Backflow Metering
Designed specifically for small target weights, the measuring cup backflow metering system supports accurate dosing in the 0.4–0.6 g range. By controlling backflow during dispensing, the system helps stabilize portion weights, reduce material scattering, and maintain a cleaner filling area—especially important when handling fine granules or powder-like formulations used in snus portions.
Reliable Heat Sealing for Product Freshness and Handling Strength
The heat-sealing system delivers consistent seal strength to support freshness protection and reduce the risk of leakage during storage, transport, and downstream handling. The back-seal format is optimized for snus pouch presentation requirements, featuring a clean back without pattern and neat left/right side seals for a tidy, retail-ready look.
Back-Seal Pouch Forming with Flat Cutting for Consistent Appearance
The integrated forming and flat-cutting process produces uniform pouch geometry and clean edges for improved pack consistency. Stable pouch making also supports smoother downstream operations, such as counting, cartoning, or secondary packaging, by reducing dimensional variation.
Hygienic Stainless-Steel Construction for Daily Production
The main structure is manufactured from stainless steel to support hygiene-focused production environments and routine cleaning. Corrosion-resistant surfaces and a robust frame contribute to long-term stability in demanding factory conditions, helping maintain consistent operation and easier maintenance over extended shifts.
Operator-Friendly PLC + 7-Inch HMI for Fast Setup and Repeatability
A PLC control system paired with a 7-inch touch-screen interface enables intuitive control of key parameters such as packaging speed and process settings. Clear on-screen monitoring improves operational visibility, reduces training time, and helps maintain repeatable packaging results between operators and across production batches.
Flexible Power Options for Global Plant Integration
Multi-voltage support (220V/380V) allows straightforward installation in different regions and factory standards, reducing deployment constraints and improving overall equipment adaptability for international manufacturers or multi-site operations.
Technical Specifications
| Item | Specification |
|---|---|
| Model | M180L4-SYB (Automatic) |
| Machine Type | Fully automatic 4-lane pouch packaging machine (granule/powder), back-seal structure |
| Control System | PLC + HMI |
| Touch Screen | 7 inch |
| Filling Type | Measuring cup backflow metering |
| Packaging Type | Pouch |
| Sealing Type | Heat sealing |
| Sealing Form | No pattern on the back; left and right sealed |
| Packaging Film Width | 120 mm |
| Dosage / Bag | 0.4–0.6 g/bag |
| Packaging Speed | 30–45 bags/min (single column) × 4 columns |
| Machine Dimensions (L×W×H) | 1200 × 800 × 1800 mm |
| Main Material | Stainless steel |
| Power Supply | 220V / 380V |
| Installed Power | 3 kW |
Application Fields
The M180L4-SYB is purpose-built for snus portion packaging scenarios where small-dose accuracy, stable pouch forming, and dependable sealing are essential. It is commonly applied in:
- Snus pouch production for granular snus and powder-like formulations (based on provided samples)
- High-throughput multi-lane workshops seeking capacity growth without expanding plant footprint
- Hygiene-driven manufacturing environments requiring stainless-steel equipment and easy cleaning routines
- Facilities needing consistent back-seal pouch forming, heat sealing, and flat cutting for retail-ready snus portions
