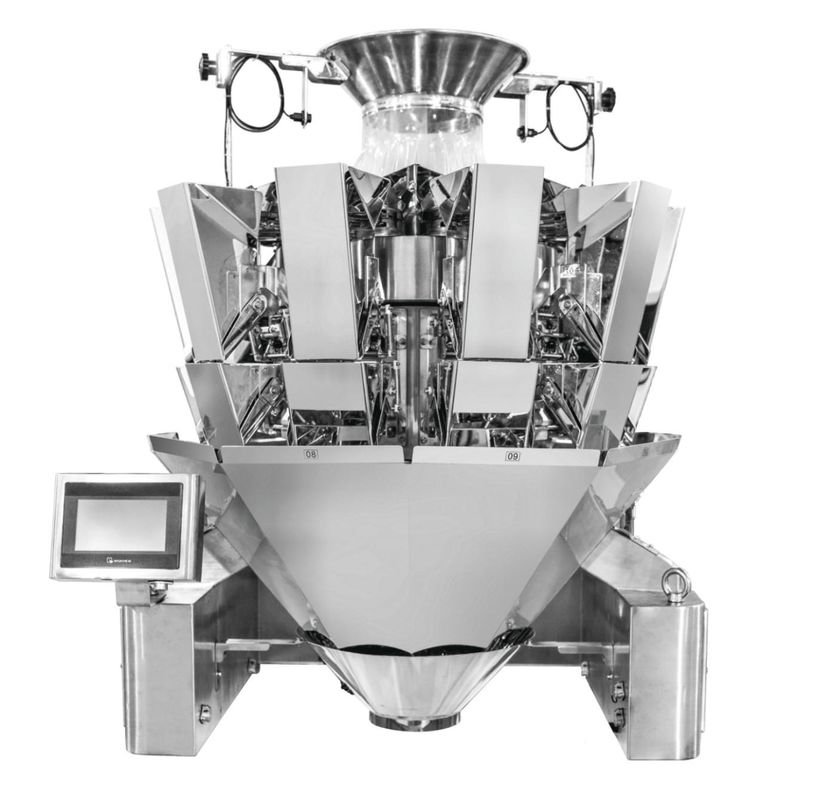

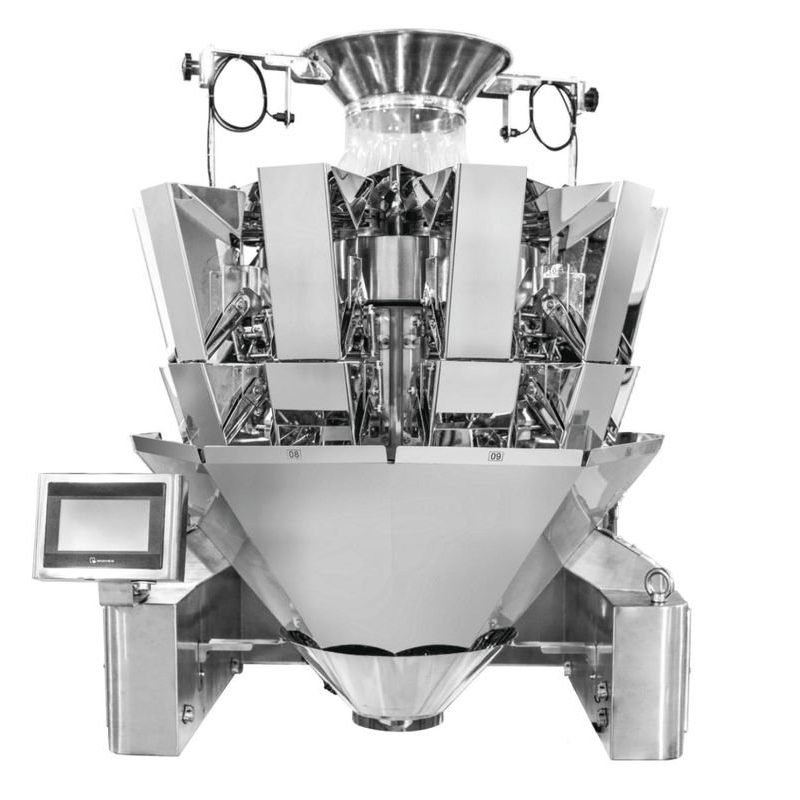

The PM-H14L5 High Speed Noodles Packaging Machine is a fully automatic vertical packaging solution engineered for precise quantitative weighing and high-efficiency bagging of small granular and powdered products. Centered on a rigid 14-head multihead weighing platform and a fast-response feeding and discharge structure, it delivers stable performance in continuous production where throughput, weight consistency, and repeatability directly impact profitability. With flexible recipe management and rapid parameter adjustment, the PM-H14L5 supports frequent product changes and varying bag specifications, making it an ideal choice for modern food factories seeking reliable automation for noodles-related packaging lines and other dry-product applications.
Product Introduction
Designed to combine speed with weighing accuracy, the PM-H14L5 integrates multihead combination weighing with an intelligent control architecture to ensure each pack meets target weight requirements while maintaining a smooth material flow. The system is optimized for materials that may be free-flowing (such as sugar and salt) or more challenging (such as seasoning powders and irregular granules). Operators can quickly switch between products and formats by selecting stored programs, minimizing downtime and reducing the risk of setup errors. For facilities with diverse SKUs, mixed-material requirements, or changing production schedules, the PM-H14L5 provides a scalable, production-ready platform that keeps output consistent shift after shift.
Product Features
The PM-H14L5 supports simultaneous weighing of different materials, enabling mixed-product packing when required and improving flexibility for combo packs or blended recipes. A multilingual control system paired with a responsive touch interface makes operation intuitive for global teams, shortening training time and simplifying daily setup and monitoring.
Its stepless vibrating feeding system features adjustable amplitude to enhance material fluidity and maintain stable feeding. This helps reduce bridging and uneven flow commonly seen with powders or non-uniform granules, improving weighing consistency and overall cycle stability. Production parameters can be adjusted directly during operation, allowing operators to respond quickly to real-time changes such as material behavior, ambient humidity, or upstream feeding fluctuations.
To support fast changeovers and standardized production, up to 99 parameter programs can be stored for one-touch recipe recall. This improves repeatability across multiple products and bag sizes, and helps ensure consistent quality across different operators and shifts. For improved hygiene and material control, an optional leak-proof hopper is available to reduce dusting and prevent fine product loss. A wide range of auxiliary devices can be configured to match different materials, packaging styles, and workshop layouts, helping manufacturers tailor the system to specific line requirements without compromising stability.
Technical Specifications
| Model | PM-H14L5 |
| Weighing Heads | 14 hoppers |
| Single Weighing Range | 10–2000 g |
| Weighing Accuracy | ±0.2–3 g |
| Max Speed | 55 WPM |
| Bucket Capacity | 5000 ml |
| Operation Interface | 7-inch touch screen (10-inch optional) |
| Power Supply | AC 220V ±10%, 50/60Hz, 1.5 kW |
| Drive System | Step motor |
| Machine Dimensions (L×W×H) | 1260 × 1260 × 1880 mm |
| Gross Weight | 460 kg |
| Optional Devices | Dimple plate, timing hopper, diverter device, 10-inch touch screen, Teflon coating/paint, load cell top cone, patterned panel, aggregate hopper, material distribution device, weighing main oscillator |
Application Fields
The PM-H14L5 is designed for quantitative weighing and packaging of a broad range of granular and powdered materials, including grains, seeds, sesame, sugar, salt, monosodium glutamate (MSG), milk powder, coffee powder, and seasoning powder. It is especially suitable for noodle-related packaging lines that demand high speed and stable performance, including production scenarios involving mixed-material packing, frequent SKU switching, or strict weight consistency requirements in continuous operation.
