Product Overview

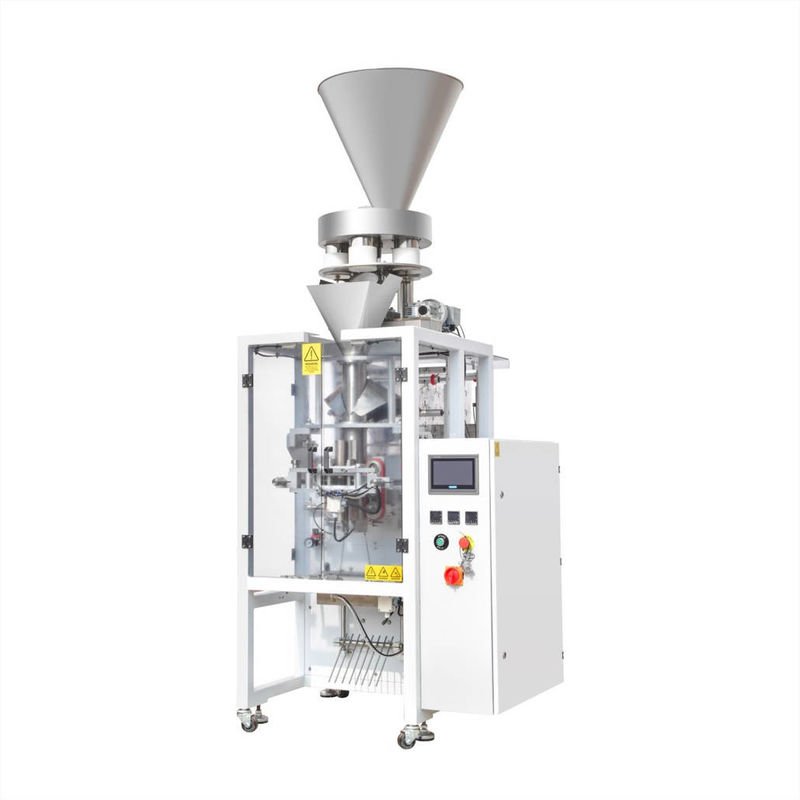

The Pack Mate PM-G50II Automatic Bag Filling Machine is a compact, production-ready pouch forming, filling, and sealing system developed for small-dose particulate packaging using composite films. Built to deliver stable high-speed performance with consistent sealing quality, it integrates accurate film tracking, reliable registration, and flexible dosing adjustment to support multi-SKU production. With a practical 1–50 ml packaging capacity and optimized utility demand, the PM-G50II is an efficient choice for plants seeking to upgrade from manual packing to dependable automation while maintaining neat pouch appearance, strong seals, and repeatable output.
Product Features
Servo-driven roller film pulling for stable operation: A roller bag-pulling mechanism powered by a Schneider servo motor ensures smooth film transport, accurate positioning, and consistent pouch forming during continuous runs, helping reduce film deviation and improving overall packaging stability.
Flexible small-dose dosing adjustment: Designed for the small-volume segment, the machine supports a 7–50 ml measurement range with four-level adjustment, enabling fast changeovers between different pouch sizes and product requirements without sacrificing line efficiency.
Strong, consistent sealing for composite packaging films: Optimized for composite materials, the PM-G50II delivers robust heat sealing with stable seal geometry. A 9 mm horizontal seal and 7 mm vertical seal enhance package integrity, supporting lower leakage risk and better shelf performance.
Selectable sealing pattern to match packaging needs: The heat-seal surface can be configured with a mesh pattern (0.8 mm spacing) or straight pattern (1.2 mm spacing), allowing manufacturers to balance aesthetics, grip, and sealing characteristics based on film structure and product handling.
Accurate registration and neat pouch presentation: Equipped with a JULONG optoelectronic eye, the system improves mark detection and tracking accuracy, stabilizing bag length control and ensuring consistent print alignment and clean, uniform pouch appearance across batches.
High throughput for demanding sachet production: With a packaging speed of 50–100 bags/min (gearbox ratio 1:20), the PM-G50II supports efficient output for operations producing high volumes of small sachets or pouches.
Low utility consumption for cost-effective production: Requiring 6 kg air source pressure and consuming only 0.2 m³/min of gas, the machine helps reduce operating costs while maintaining dependable pneumatic performance in daily factory use.
Industrial-grade structure for long service life: A solid 180 kg machine body enhances vibration resistance and running stability, supporting continuous operation in workshop environments where durability and repeatability are critical.
Technical Specifications
| Item | Specification |
|---|---|
| Model | Pack Mate PM-G50II |
| Machine Type | Automatic pouch forming, filling & sealing machine (for particles) |
| Applicable Product | Free-flowing particulate materials |
| Packaging Film | Composite packaging material |
| Packaging Capacity | 1–50 ml |
| Measurement Range | 7–50 ml, four-level adjustable |
| Packaging Speed | 50–100 bags/min (gearbox 1:20) |
| Bag Pulling Method | Roller bag pulling (Schneider servo motor) |
| Cutting / Drive Method | Stepping motor for bag pulling control |
| Sealing Width | Horizontal: 9 mm; Vertical: 7 mm |
| Heat Sealing Pattern | Mesh (0.8 mm spacing) or Straight (1.2 mm spacing) |
| Optoelectronic Eye | JULONG |
| Air Source Pressure | 6 kg |
| Gas Consumption | 0.2 m³/min |
| Machine Weight | 180 kg |
| Bag Size Capability | Bag width ≤ 85 mm; film width ≤ 170 mm; bag length ≤ 120 mm (with one forming set) |
| Measurement Accuracy | ±1–10% (subject to product characteristics and fill volume) |
Application Fields
The PM-G50II is designed for automated small-dose pouch packaging where composite films and particulate products are required. It is widely used in:
- Food processing: seasoning granules, sugar substitutes, dry additives, instant food inclusions, and other free-flowing edible particulates.
- Pharmaceutical & nutraceutical: granulated supplements and measured-dose particulate preparations (subject to local regulatory and site compliance requirements).
- Chemical & daily-use products: additive granules, desiccant-like particles, and similar materials requiring fast, consistent sachet packaging.
- General manufacturing: production lines needing stable high-speed pouch forming, filling, and sealing for small-volume particulate packaging.
