The High-Speed Multi-Lane Automatic Tomato Sauce Packaging Machine is engineered for continuous, high-output sachet production of tomato sauce and other viscous or semi-viscous condiments. By integrating multi-axis servo motion control, precision temperature regulation, and a waterproof computerized linear weighing system, the machine delivers stable forming, accurate dosing, and consistent sealing at demanding production speeds. Its robust stainless-steel construction, broad film compatibility, and operator-friendly touch interface make it an ideal solution for modern food factories, co-packers, and condiment brands seeking reliable multi-lane performance and fast specification changeovers.
Product Introduction

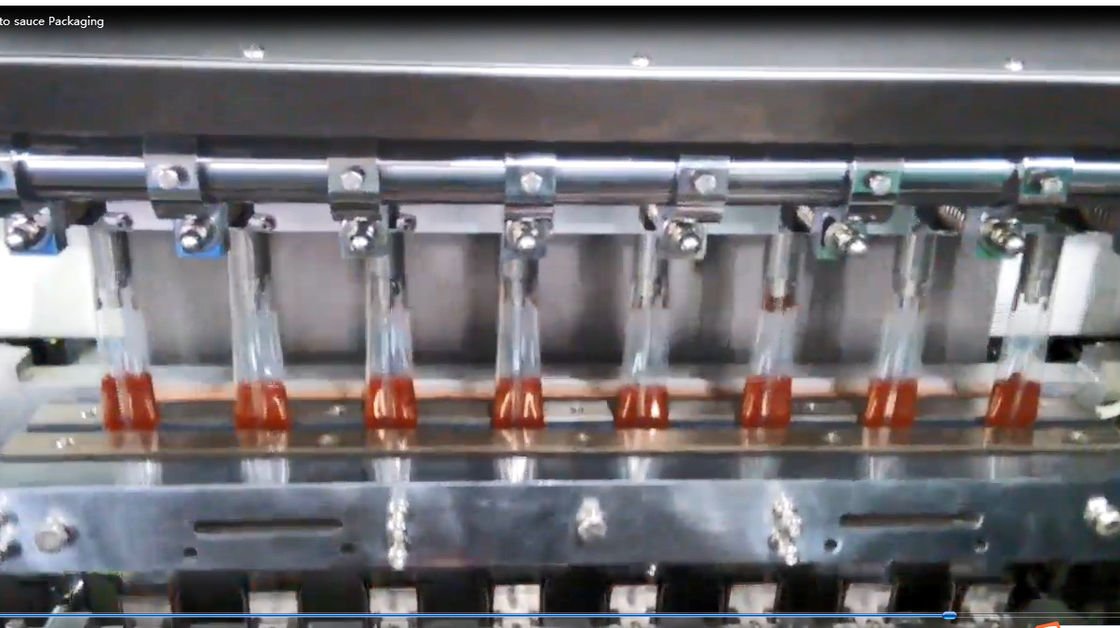

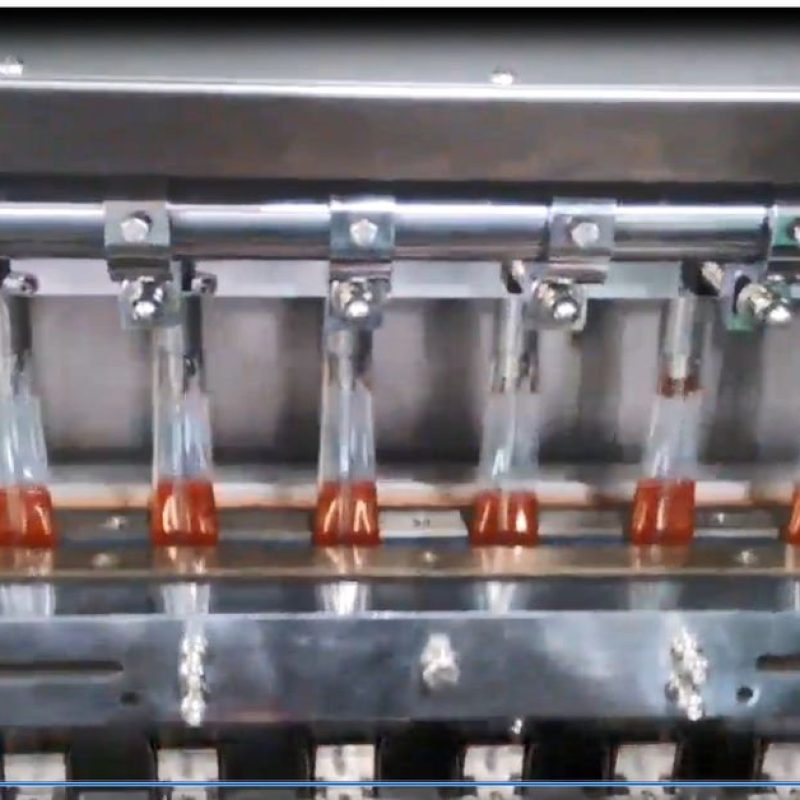

Designed around high-speed multi-lane packaging requirements, this system combines the main packaging unit with a computerized linear scale to achieve efficient, repeatable sachet packing. The machine coordinates film feeding, bag forming, filling, and sealing through independent servo drives for precise timing and smoother operation at high speeds. A high-accuracy temperature control module maintains stable sealing conditions, while proven pneumatic and bearing components enhance long-term reliability. With hygienic 304 stainless-steel contact structures and streamlined adjustment references, it supports quick setup, consistent output, and reduced downtime across multiple product and pouch specifications.
Product Features
High-speed multi-lane throughput: Optimized for rapid, continuous sachet cycles while maintaining stable seal integrity. Depending on product characteristics and target weight, output can reach up to 55 bags per minute.
Independent multi-axis servo drive: Multi-axis servo motion control enables fast response, accurate positioning, and synchronized actions for stable bag forming and sealing under high-speed conditions.
Stable high-speed control architecture: The servo motor system adopts KOSSI (KoSI) components to improve stability and consistency during long-duration, high-load operation.
Touchscreen operation for faster changeovers: The operator interface supports parameter setting, real-time status visualization, and convenient specification switching. Key adjustment points include rotation-angle references to minimize setup time and improve repeatability between batches.
Consistent sealing performance: An Autonics temperature control module maintains temperature deviation within ±1°C, helping ensure uniform sealing quality across continuous production and multi-lane output.
Durable, trusted component selection: Airtac (Taiwan) pneumatic components and NSK (Japan) bearings improve reliability, reduce wear, and support stable long-term production.
Efficient corner insertion adjustment: Corner insertion uses a rotary cylinder (EASUN) for simpler alignment, quicker fine-tuning, and more stable operation during high-speed runs.
Food-grade, easy-to-clean build: The weighing unit and major product-contact structures use 304 stainless steel to meet hygiene expectations and simplify cleaning and maintenance routines.
Wide packaging film compatibility: Supports multiple common laminated films used for condiment sachets, helping manufacturers standardize equipment while accommodating different market requirements.
Technical Specification Parameters
| Product Type | High-speed multi-lane automatic tomato sauce packaging machine (with computerized linear scale) |
| Total Power | 8 kW |
| Power Supply | AC 220V / 50Hz |
| Air Pressure / Consumption | 6 kg/cm² (gas consumption: 600 L/min) |
| Machine Dimensions (L×W×H) | 1420 × 988 × 1500 mm |
| Machine Weight | 650 kg |
| Compatible Packaging Materials | OPP/CPP, PT/PE, KOP/CPP aluminized film, aluminum film |
| Drive & Control (Main Unit) | Multi-axis servo independent drive; KOSSI (KoSI) servo system; touch-screen parameter setting |
| Temperature Control | Autonics temperature control module; deviation ±1°C |
| Pneumatic / Bearing Brands | Airtac (Taiwan) pneumatic components; NSK (Japan) bearings |
| Measuring Method | Computerized linear scale (linear scale packaging) |
| Scale Model / Material | LWS4/3 waterproof computerized linear scale; 304 stainless steel (includes installation bracket) |
| Weighing Range | 10–2000 g |
| Weighing Speed | ≤ 55 bags/min (depending on pack weight and material characteristics) |
| Weighing Accuracy | X (0.5) grade; approx. ±0.2 to 2 g (depending on material conditions) |
| Hopper Capacity | 300 ml |
| Scale Drive Mode | Stepper motor |
| Operating Interface | Inovance 7-inch color touch screen |
| Body Material | 304 stainless steel |
| Scale Bucket Material | 304 flat stainless steel |
| Scale Power | AC 220V / 50Hz, 1 kW / 10A |
| Packaging Weight (Scale Unit) | 150 kg |
Application Areas
This machine is developed for automated sachet packaging of tomato sauce and comparable viscous products where stable forming, consistent dosing, and reliable sealing are required. Typical uses include ketchup and tomato-based condiments, sauce and seasoning sachets for catering, takeaway, and quick-service restaurants, single-serve portions for hotels and airlines, and high-volume condiment lines in food factories and co-packing operations. It is also suitable for similar applications that demand high-speed multi-lane output, dependable temperature-controlled sealing, and hygienic stainless-steel construction.
