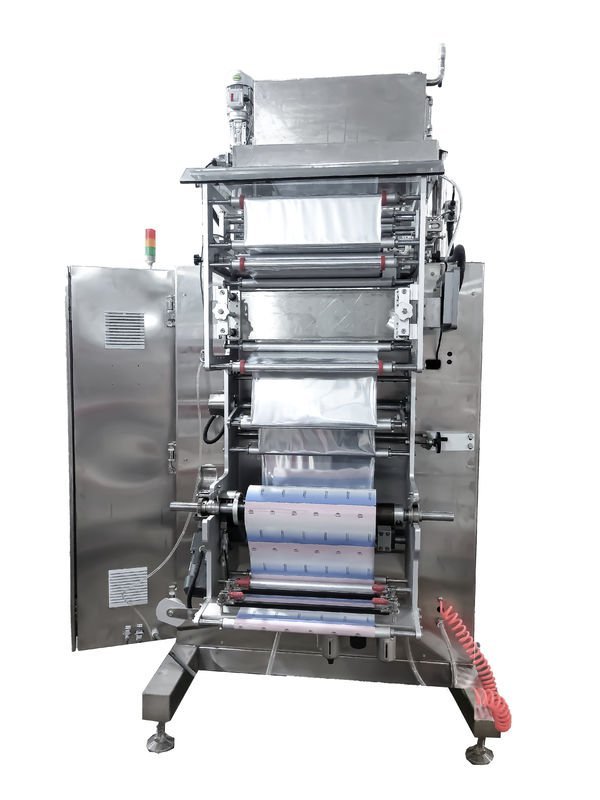

High-Speed Automatic Multi-Lane Pouch Packing Machine (Particles / Powders / Liquids)
Built for stable, continuous, and high-output sachet production, this high-speed automatic pouch packing machine integrates dependable electrical architecture, precise film registration, and a synchronized sealing-and-pulling mechanism to deliver consistent pouch quality across multi-lane operation. The system is engineered to form, dose, fill, and seal small-format pouches for particles, powders, and liquids (configured to match product properties and dosing requirements). With repeatable motion control and industrial-grade components, it supports demanding production schedules where speed, accuracy, and reliable sealing performance are essential.
Product Features
Industrial-Grade Control System
Core electrical components are selected from Schneider or OMRON to strengthen long-term stability, improve signal response consistency, and maintain reliable sealing/cutting execution during continuous high-cycle production. The coordinated control layout helps reduce downtime and supports predictable operation for routine manufacturing.
High-Throughput Multi-Column Production
Designed for multi-lane output, the machine achieves 30–60 cuts per minute per lane, multiplying total capacity by the number of columns. Actual throughput depends on the material’s flow characteristics and the dosing/measurement performance, ensuring the line can be optimized for different products and viscosity or granule profiles.
Accurate Film Tracking & Print Registration
A JULONG photoelectric registration sensor (“ronic eye”) tracks printed film marks in real time, helping keep cutting positions aligned and pouch appearance uniform. This improves pack consistency, minimizes film waste, and supports stable visual quality over long runs.
Synchronized Bag Pulling and Sealing for Consistent Length Control
The motor-crank heat-sealing bag-pulling structure, combined with encoder-controlled sealing action, synchronizes film travel with sealing and cutting. This design supports stable pouch length, consistent seal pressure, and repeatable sealing results, especially at higher running speeds.
Hygienic, Material-Safe Construction
All product-contact parts are manufactured in Stainless Steel 304, enabling easier cleaning and supporting hygienic handling across a broad range of food, daily chemical, and compatible industrial materials.
Wide Compatibility with Composite Films
Compatible with common composite packaging films such as BOPP/PE, allowing users to select film structures based on barrier performance, sealing behavior, shelf-life targets, and product positioning requirements.
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | High-Speed Automatic Pouch Packing Machine (Multi-Column) |
| Applicable Materials | Particles, powders, liquids (configured per packaging requirement) |
| Bag Pulling Method | Motor crank type heat-sealing bag pulling (encoder-controlled sealing action) |
| Sealing Method | Twisted edge adhesive sealing |
| Horizontal Sealing Method | AirTAC cylinder horizontal sealing |
| Back Sealing Width | 4–8 mm, no pattern |
| Horizontal Sealing Width | 8–10 mm, single-sided diagonal mesh pattern (1 mm spacing) |
| Easy-Tear Option | Point-shaped easy-tear or double easy-tear (independent easy-tear device) |
| Packaging Capacity | 1–50 ml |
| Measurement Accuracy | ±1% to ±10% (varies by material type and dosage behavior) |
| Packaging Speed | 30–60 cuts/min × columns (subject to material and dosing conditions) |
| Applicable Columns | 4–12 columns (determined by bag size; bag width specification cannot be changed) |
| Bag Making Range | Bag width 20–67 mm × bag length ≤150 mm or ≤180 mm (choose one) |
| Packaging Film | Composite packaging material (e.g., BOPP/PE) |
| Registration Sensor | JULONG |
| Gas Source Pressure | 5–6 kg |
| Gas Consumption | 2 m³/min |
| Working Voltage | 380 V / 50 Hz, single-phase, 10–20 kW (depending on lanes/columns) |
| Electrical Components | Schneider or OMRON |
| Machine Weight | 700 kg |
| Horizontal Sealing Leak-Proof Line | 1 mm (only for liquid packaging) |
| Forming Reference | MAX 600 mm (standard with 1 set of bag-making specifications, no flash) |
Application Fields
Food & Beverage
Ideal for small-dose sachets such as snack granules, seasonings, sugar-like particles, powdered ingredients, and liquid condiments where clean sealing, accurate registration, and consistent pouch dimensions are required for retail-ready presentation.
Daily Chemicals & Personal Care
Suitable for single-use or sample-size packs of liquid and semi-liquid daily-use products (with matching configuration), benefiting from stable sealing performance, neat pouch appearance, and reliable multi-lane output.
Pharmaceutical & Health-Related Packaging
Supports portion-controlled packaging for powders or granules (subject to required compliance and configuration), where repeatable dosing, hygienic product-contact surfaces, and consistent sealing integrity are critical to quality assurance.
Chemical & Industrial Materials
Applicable to compatible industrial powders and particles, leveraging a robust frame, stable pneumatic horizontal sealing, and scalable multi-column throughput to improve batch efficiency and production continuity.
