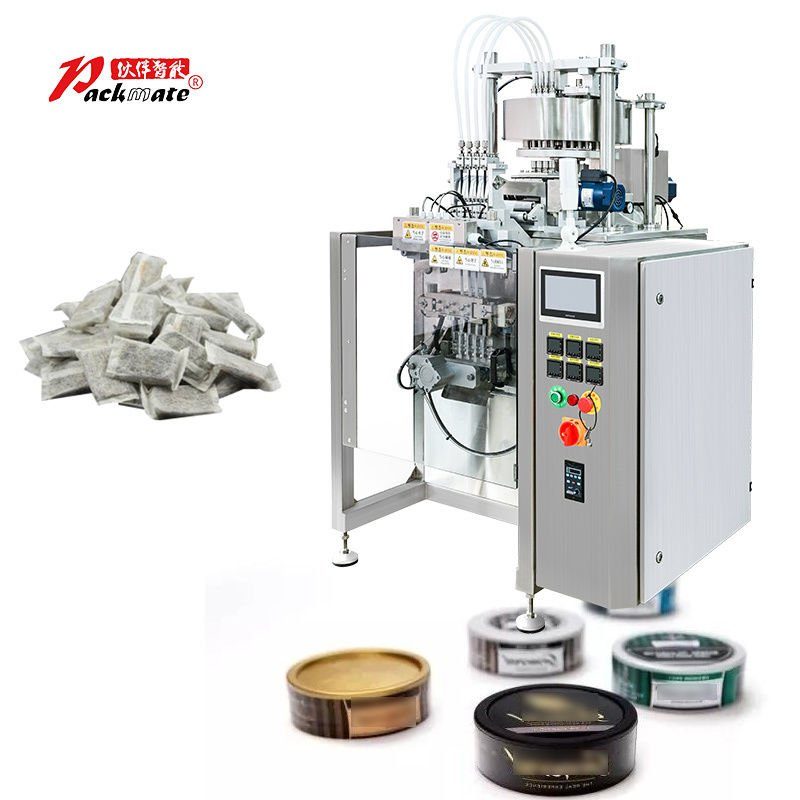

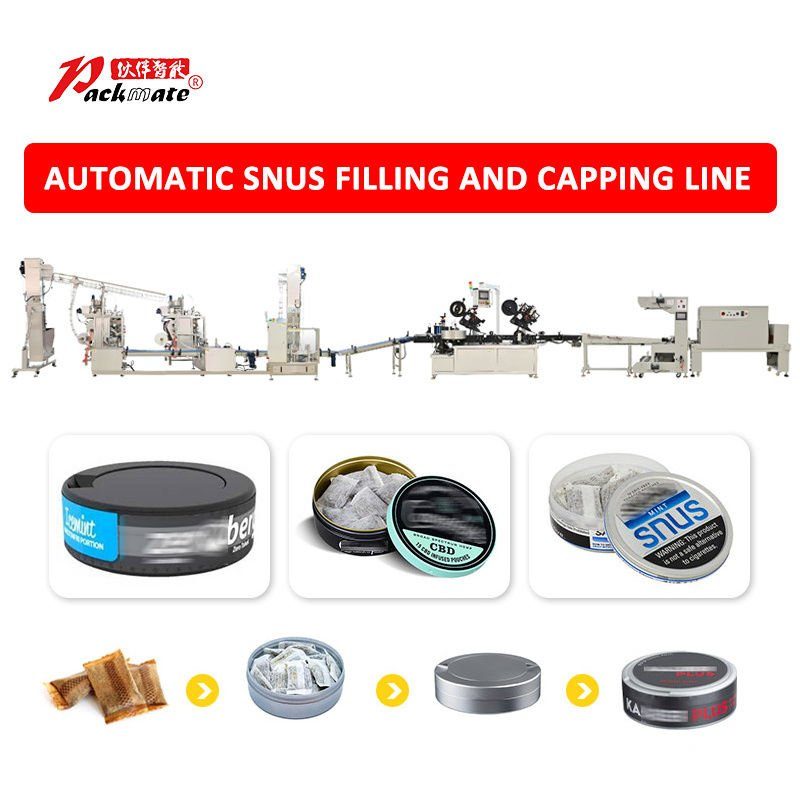

The Snus Packing Machine is a fully automatic, industrial-grade packaging system designed for high-speed and high-precision packing of snus powder and nicotine pouch products. Built to handle both dry granules and moist granules with demanding flow characteristics, the machine integrates film forming, quantitative dosing, back sealing, cutting, and finished-sachet output in one continuous process. With a 4-lane back-seal structure and stable servo-driven web handling, it helps manufacturers achieve consistent sachet appearance, tight weight control, and reliable uptime. The system is also engineered to connect smoothly with downstream solutions for secondary packing into cans, bottles, bags, or pouches, supporting scalable production from single product runs to multi-SKU operations.
Product Introduction
Engineered for modern smokeless tobacco and nicotine pouch facilities, this machine focuses on one key challenge: repeatable dosing and sealing performance across materials with different moisture levels. For dry granules, horizontal screw metering delivers controlled, uniform filling; for wet granules, rotary metering is optimized to reduce bridging and improve flow consistency. A patented quantitative measuring concept (utility model) is applied to support stable output when processing moist materials, helping to reduce weight deviation and minimize rejects. The back-seal bag structure with inner and outer sealing ensures clean edges and dependable seal integrity, while the flat-cut finish supports consistent downstream counting and packing.
Product Features
- 4-lane high-efficiency production: multi-lane architecture increases throughput while keeping each lane aligned for uniform pouch quality.
- Accurate dosing for dry and wet granules: dedicated metering methods match material behavior, improving filling stability and pouch-to-pouch consistency.
- Patented quantitative measuring technology: developed to address dosing challenges of moist and difficult-to-handle granules, enhancing reliability in real-world production.
- Fully automatic workflow: integrates forming, filling, sealing, pulling, and cutting to reduce manual intervention and lower operator-related variability.
- Stable web control and sealing execution: servo-driven pulling and synchronized horizontal sealing with up/down bag clamping improve film tracking and seal repeatability.
- Flexible size configuration: selectable web widths and pouch dimensions allow fast adaptation to different product specifications and market requirements.
- Industrial durability with low-noise operation: optimized mechanical structure supports long service life and more comfortable plant-floor operation.
- Service-ready platform: modular design simplifies maintenance and supports customization; includes 1-year quality assurance and lifetime after-sales support.
Technical Specifications
| Product Name | Snus Packing Machine |
| Automatic Grade | Automatic |
| Packaging Material / Format Compatibility | Cans, Bottles, Bags, Pouches |
| Machine Type | Dry Granule 4-Lane Back Seal / Wet Granule 4-Lane Back Seal |
| Applicable Material | Dry Granule / Wet Granule |
| Measuring Method | Dry: Horizontal Screw Metering / Wet: Rotary Metering |
| Supported Moisture Level | Dry: 3–10% / Wet: 25%–40% |
| Packaging Weight | 0.4–0.6 g |
| Speed | 30–45 cuts/min |
| Bag Style | Back Seal Bag (inner and outer sealing) |
| Web Width (select one) | 120 mm / 128 mm / 136 mm |
| Bag Size (select one) | Bag width: 13 mm / 14 mm / 15 mm; Bag length: 20–50 mm |
| Vertical Seal | 4 mm, no pattern |
| Horizontal Seal | 4 mm, no pattern |
| Bag Pulling Method | Heat sealing and bag pulling; servo motor bending drive; horizontal sealing with up/down bag clamping |
| Cutting Style | Flat cut (die-cut device) |
| Air Pressure & Consumption | 0.6–0.8 MPa; 2.5–3 m³/min |
| Power | 220V / 50Hz, 3.5 kW |
| Packaging Details | Wooden box packaging |
| Minimum Order Quantity | 1 |
| Delivery Time | 30 days |
| Payment Terms | L/C, T/T |
Product Application Fields
Designed for operations where dosing stability, seal integrity, and throughput are essential, the Snus Packing Machine is widely used in nicotine pouch and smokeless tobacco manufacturing environments. Its ability to process both low-moisture and high-moisture granules makes it especially suitable for facilities that run multiple formulations, require repeatable quality standards, or need to integrate primary sachet packing with secondary packaging formats such as cans, bottles, bags, and pouches.
- Nicotine pouch and smokeless tobacco pouch manufacturing lines
- Snus powder sachet packaging and multi-lane pouch production
- Herbal pouches and other fine-granule or moist-granule sachet products
- Factories scaling output with automatic packaging and configurable pouch specifications
- Production lines requiring integration with downstream can/bottle/bag packing workflows
