Packmate multi-lane packaging machines are designed for high-output sachet production where speed, accuracy, and long-term stability are critical. By running multiple lanes in parallel, one machine can deliver the throughput of several conventional single-lane units while reducing energy usage, labor dependency, and workshop footprint. A full-servo architecture coordinates film feeding, bag pulling, dosing, sealing, and cutting to keep every lane consistent—helping manufacturers maintain uniform pack quality at scale. The modular platform supports fast changeover for different bag dimensions, lane counts, and product viscosities or particle sizes, making it a dependable solution for automated packaging lines that handle frequent SKU updates.
Product Introduction

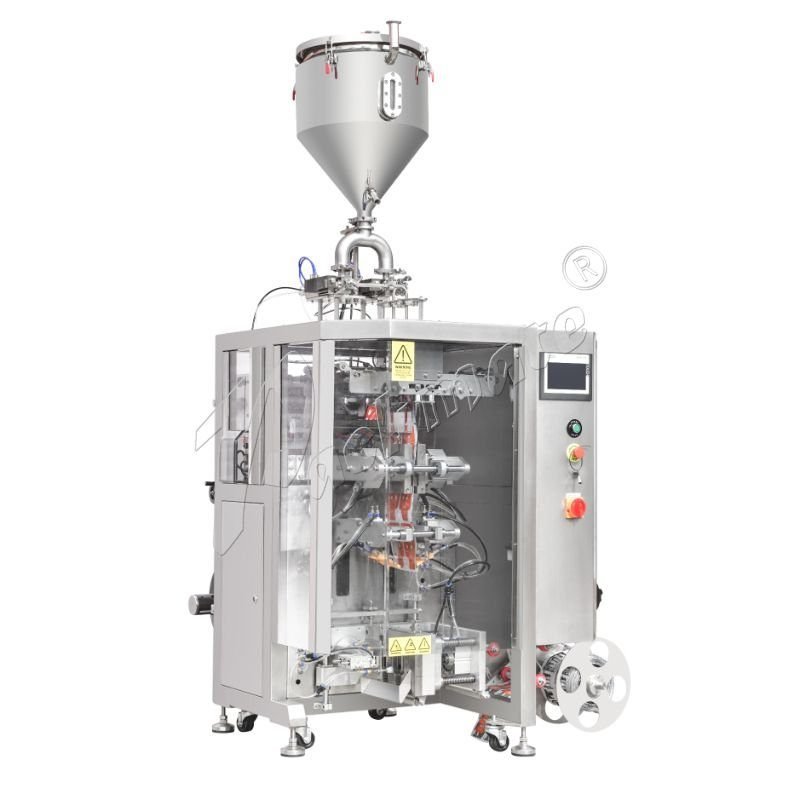

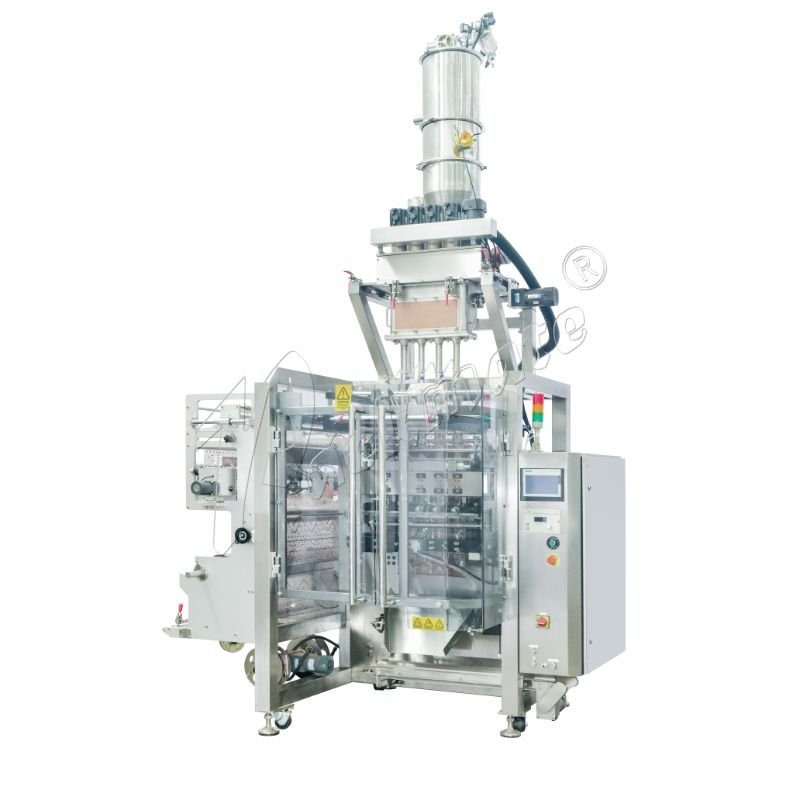

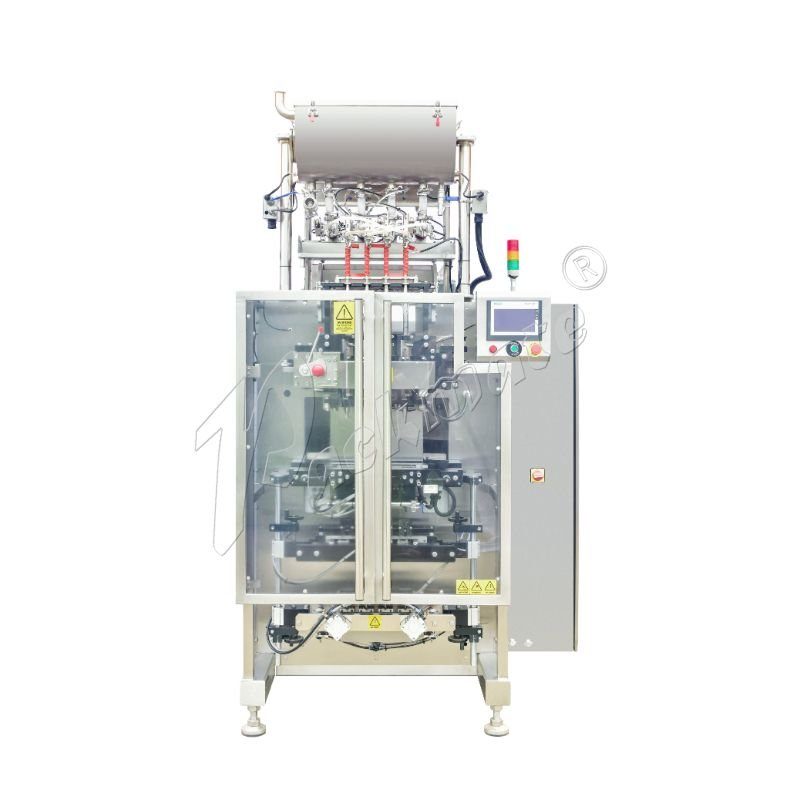

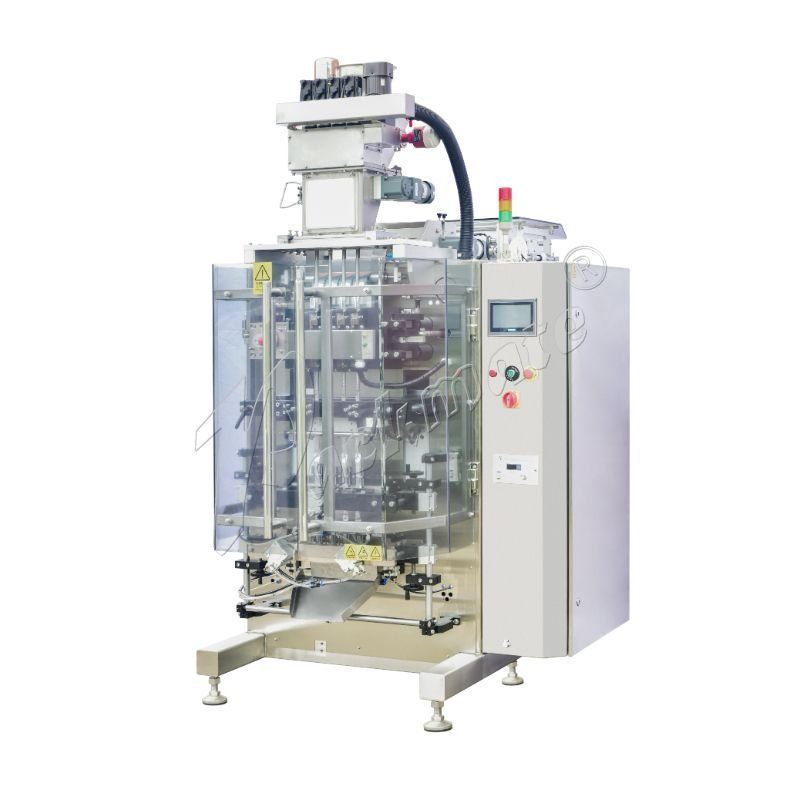

This multi-lane stick/sachet packaging machine is built to package both granules and liquids in compact, consumer-friendly packs. The system forms bags from composite films, meters product with high-precision dosing options, and performs stable twist-edge sealing with clean, reliable cut-off. With lane configurations up to 12, the machine is optimized for mass production of small-dose packs such as condiments, personal care samples, and pharmaceutical liquids. Servo-driven pulling and synchronized motion control ensure repeatable bag length, neat sealing, and smooth operation across continuous shifts.
Product Features
Multi-Lane High Throughput
Parallel lanes (2–12 optional) significantly increase output per square meter. Each lane runs in sync, enabling high-capacity production without sacrificing dosage repeatability or seal consistency—ideal for peak-season demand and contract packing schedules.
Full-Servo Precision Control
Servo motors manage film transport and bag pulling through a synchronous belt system, improving tracking stability and maintaining consistent cutting positions. This reduces rework, minimizes film waste, and helps achieve uniform aesthetics across all lanes.
Accurate Metering with Low Waste
Depending on product characteristics, the machine can be equipped with volumetric pumps or flow meters to deliver stable dosing performance (accuracy up to ±1%, material dependent). Reliable metering lowers giveaway, reduces leakage risk, and improves cost control during long runs.
Stable Sealing for Better Leak Resistance
Twist-edge sealing is engineered for dependable closure. The horizontal seal structure supports enhanced leak-proof performance with defined seal width and texture, helping protect product integrity during transportation, storage, and end-user handling.
Compact Layout, Lower Total Cost
One multi-lane unit can replace multiple single-row machines, cutting down equipment investment, operator workload, maintenance points, and power consumption. The compact footprint improves line planning flexibility and supports streamlined material flow.
Fast Changeover and Customizable Options
The modular design supports rapid adaptation to new sachet sizes, fill volumes, film types, and optional functions such as easy-tear opening and color mark tracking. This flexibility is especially valuable for factories producing multi-SKU sample packs or short-to-mid production batches.
Technical Specification Parameters
| Parameter | Specification |
|---|---|
| Packaging Materials | Granules / Liquids |
| Packaging Range | 10 ml–30 ml; 30 g–100 g |
| Measuring Accuracy | ±1% (material dependent) |
| Packaging Speed | 60–70 cuts/min × 8–12 lanes |
| Packaging Film Width | 840 mm |
| Bag Making Range | 27.5 mm × ≤150 mm |
| Sealing Method | Twist-edge sealing |
| Back Seal Width | 5 mm, plain |
| Horizontal Seal Width | 9 mm, single-sided texture; vertical stripes 1.5 mm; 1 mm leak-proof line |
| Cutting Method | Irregular rounded corner; 2–3 mm waste; independent cutter |
| Easy Tear Opening | One-cut (optional) |
| Photoelectric Eye | LX101 |
| Bag Pulling Method | Servo motor synchronous belt |
| Packaging Film | Composite packaging materials |
| Operating Voltage | 380 V / 50 Hz, three-phase, 12–15 kW |
| Air Source Pressure | 7–8 kg |
| Air Consumption | 1 m³/min |
| Machine Weight | 1000 kg |
Customization (Optional)
| Item | Specification |
|---|---|
| Lane Configurations | 2, 4, 6, 8, 10, 12 lanes |
| Bag Size | Customizable per production needs |
| Fill Volume | Adjustable according to material density |
| Sealing Type | Twist-edge; optional easy-tear |
| Metering System | Volumetric pump or flow meter; precision up to ±1% |
| Film Type | Composite or specialized packaging film |
| Optional Features | Multi-product compatibility, color marking, quick-change parts |
Application Fields
This multi-lane packaging machine is widely used wherever small-dose, high-speed sachet production is required, including:
- Food & Beverage: ketchup, mustard, honey, soy sauce, vinegar, fruit juice, jam, cream, flavored oils
- Daily Chemicals: shampoo, conditioner, shower gel, hand soap, skincare products, toothpaste
- Pharmaceutical & Health: oral liquids, syrups, disinfectants, ointments
- Industrial & Lubricating Oils: lubricants, adhesives, sealants, chemical reagents
With scalable lane configuration, servo-driven consistency, and flexible dosing/sealing options, the system supports modern factories seeking higher efficiency, reliable quality control, and fast response to product changes.
