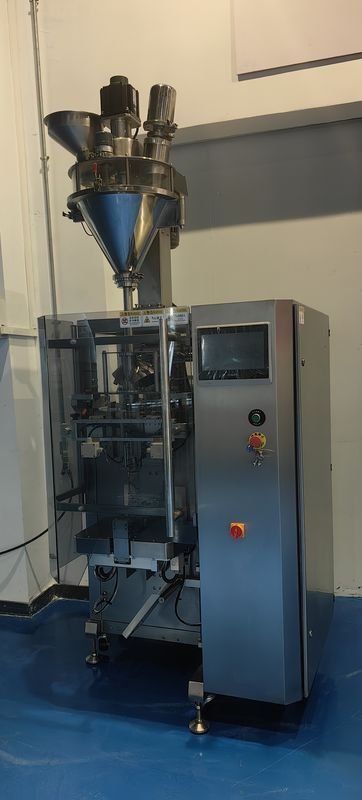

The PE/BOPP Pouch Packing Machine is a fully automatic vertical form-fill-seal (VFFS) system engineered for continuous, high-efficiency pouch forming, dosing, filling, and sealing. Designed for modern industrial packaging lines, it processes composite films such as BOPP/PE with stable film tracking and precise motion coordination, delivering clean, consistent seals and attractive finished bags. With a forming width up to 320 mm (including one flip-collar forming set), the machine integrates film forming, metering interface, filling, vertical and horizontal sealing, and pattern cutting into one compact platform—helping manufacturers improve output, reduce manual labor, and maintain repeatable packaging quality across long production shifts.
Product Introduction
Built for reliability and throughput, this automatic pouch packing machine combines encoder-synchronized bag pulling with pneumatic-assisted horizontal sealing to support stable operation at industrial speeds. The structure is optimized for smooth workflow from film unwinding to finished-bag discharge, while key product-contact components adopt SUS304 stainless steel to enhance hygiene, corrosion resistance, and service life. Depending on the selected dosing configuration, the machine can package particles, powders, or liquids, making it a versatile solution for factories seeking standardized automation across multiple product lines.
Product Features
Integrated VFFS workflow for efficient production
Bag forming, filling, sealing, and cutting are completed within a single automatic cycle, supporting streamlined line layout and reduced operator intervention.
Composite film compatibility for broad packaging needs
Compatible with composite packaging materials such as BOPP/PE, helping deliver stable forming performance and reliable sealing results for common pouch formats.
Consistent, high-strength sealing structure
The vertical seal uses a straight pattern with 2 mm spacing and a 10 mm sealing width to improve package integrity and reduce the risk of leakage during transportation and handling.
Pneumatic horizontal sealing for stable closing performance
AirTAC cylinder-driven horizontal sealing provides strong, repeatable sealing pressure, supporting uniform seal appearance and dependable closure strength.
Encoder-coordinated bag pulling for accuracy and reduced waste
Motor crank-type heat-sealing bag pulling with encoder-controlled sealing action improves synchronization between film movement and sealing timing, helping minimize misalignment and material loss.
Clean cutting presentation for better downstream handling
Pattern cutting with 3 mm spacing enhances edge consistency and visual presentation, supporting smoother counting, conveying, and secondary packing operations.
Industrial-grade electrical components for long-shift stability
Schneider or OMRON electrical components improve control reliability, helping ensure stable running performance in demanding factory environments.
Hygienic, durable construction
SUS304 stainless steel in key contact areas supports sanitary requirements, easy cleaning, and durability for frequent production cycles.
Technical Specifications
| Item | Specification |
|---|---|
| Machine Type | Automatic Pouch Packing / Bag Filling & Sealing Machine (VFFS) |
| Compatible Films | Composite packaging materials such as BOPP/PE |
| Forming Machine Width | ≤ 320 mm (equipped with 1 set of flip-collar forming machine) |
| Packaging Speed | 30–50 bags/min |
| Packaging Capacity | 50–500 ml |
| Bag Size Range (W × L) | 50–150 mm × 30–240 mm |
| Measurement Accuracy | ±1% to ±10% (subject to material characteristics and fill quantity) |
| Vertical Sealing Pattern | Straight pattern, 2 mm spacing; sealing width 10 mm |
| Horizontal Sealing Method | AirTAC cylinder horizontal sealing |
| Bag Pulling Method | Motor crank-type heat-sealing bag pulling (encoder-controlled sealing action) |
| Cutting Method | Pattern cutting, 3 mm spacing |
| Working Voltage / Frequency | 380V / 50Hz, three-phase |
| Installed Power | 8–18 kW (depending on number of columns) |
| Pneumatic Supply | 5–6 kg; gas consumption 2 m³/min |
| Electrical Components | Schneider or OMRON |
| Machine Weight | 600 kg |
| Applicable Products | Particles, powders, liquids (depending on configuration) |
Application Areas
This PE/BOPP VFFS pouch packing machine is ideal for automated packaging lines requiring consistent pouch forming and dependable sealing quality. In food and beverage, it supports products such as sauces, seasonings, and drink concentrates (with suitable dosing systems). In daily chemical production, it can package detergents, shampoos, gels, and similar liquids. For pharmaceutical and nutraceutical operations, it can be configured for powders or granules where controlled dosing and stable sealing are essential. It is also well suited to general industrial packaging for granules, powders, and liquid products. With stable mechanical design, flexible material compatibility, and an output of 30–50 bags per minute, it supports both standardized production and scalable factory upgrades where automation, efficiency, and quality control are key.
