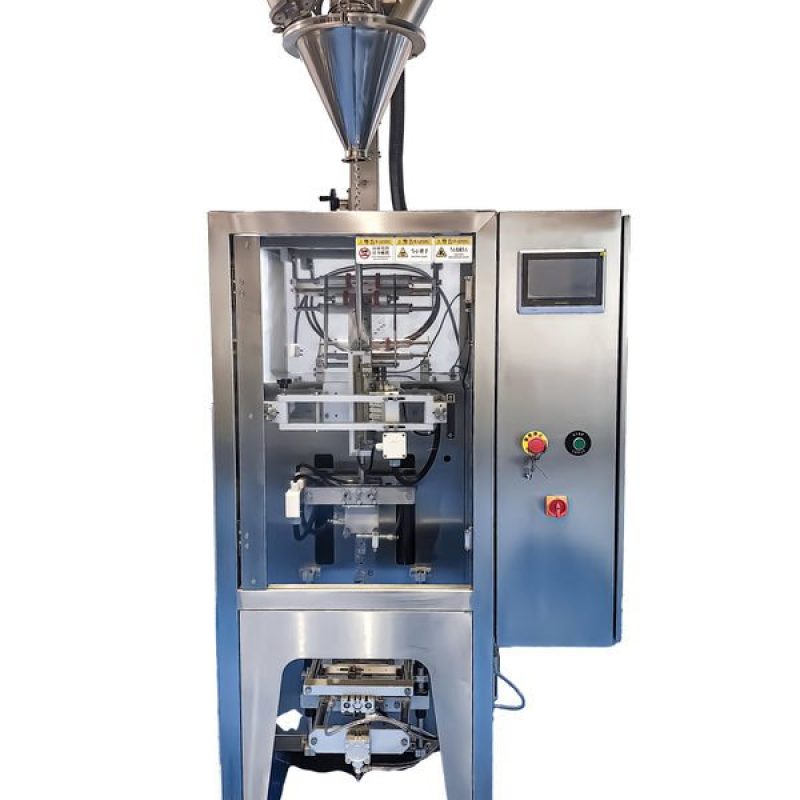

The 2.2 kW Fully Automatic Strip Back Sealing Packaging Machine is a high-efficiency pouch packaging solution engineered for stable, continuous operation in modern production lines. Designed to run paper and plastic packaging films, the system combines servo-driven film pulling, accurate heat sealing, and a touch-screen control interface to deliver consistent diagonal straight horizontal seals, neat twisted-edge vertical sealing, and reliable cutting performance. With a compact footprint of L1500 × W1000 × H2200 mm and an adjustable output of 20–50 bags per minute, it supports a broad pouch size range, helping manufacturers handle multiple SKUs with minimal downtime while maintaining clean, professional package appearance.
Product Introduction
Built for dependable automatic packaging, this machine integrates key processes—film feeding, bag forming, back sealing, horizontal sealing, and cutting—into a streamlined workflow. A Siemens servo motor controls the heat-sealing bag pulling system, improving repeatability and keeping bag length and cut position stable even during long production shifts. The sealing temperature can be set from 0–300°C to match different film structures and product needs, supporting both paper-based and plastic packaging materials within a typical film thickness range of 0.04–0.08 mm. Operators can manage production parameters through a touch screen, enabling fast changeovers, clear monitoring, and consistent output quality.
Product Features
High-throughput performance with stable sealing: Adjustable speed of 20–50 bags/min supports efficient production while maintaining uniform seal integrity through controlled heating and a consistent sealing structure.
Wide temperature control for material compatibility: The 0–300°C temperature range helps achieve dependable seals across various paper and plastic films, supporting different product characteristics and packaging requirements.
Broad pouch size adaptability: Supports bag lengths from 50–200 mm and widths from 25–150 mm, making it suitable for multiple package formats without redesigning the whole line.
Touch-screen operation for faster setup: A user-friendly touch screen simplifies setting temperature, speed, and operating parameters, reducing training time and improving daily operational efficiency.
Servo-driven bag pulling accuracy: Siemens servo motor heat-sealing bag pulling enhances positioning precision, helps reduce film waste, and improves consistency of pouch length and cutting alignment.
Selectable cutting styles: Flat cut or serrated cut options allow the finished package to match merchandising goals, consumer tearing convenience, and downstream packing requirements.
Hygienic, industrial-grade construction: 304 stainless steel structure and contact components provide corrosion resistance and support cleaner operation for food, chemical, and daily-use product environments.
Consistent sealing aesthetics: Diagonal straight horizontal sealing combined with twisted-edge vertical sealing helps produce tidy seals that enhance shelf presentation and reduce leakage risks when matched to suitable film and process settings.
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | Fully Automatic Strip Back Sealing Packaging Machine |
| Machine Size | L1500 × W1000 × H2200 mm |
| Output Speed | 20–50 bags/min |
| Power | 2.2 kW |
| Voltage | 220 V |
| Temperature Range | 0–300°C |
| Packaging Material | Paper / Plastic |
| Film Thickness | 0.04–0.08 mm |
| Bag Size Range | Length 50–200 mm; Width 25–150 mm |
| Display | Touch Screen |
| Bag Pulling Method | Servo motor heat sealing bag pulling (Siemens) |
| Horizontal Sealing Form | Diagonal Straight Seal |
| Vertical Sealing Form | Twisted Edge Sealing |
| Cutting Method | Flat Cut / Serrated Cut |
| Machine Material | 304 Stainless Steel |
Application Fields
This fully automatic pouch packaging machine is ideal for operations that require reliable back sealing, steady output, and repeatable pouch dimensions. It is commonly used for packaging powders, granules, and compatible liquid/semi-liquid products (with appropriate filling configurations), including the following industries and product types:
- Food and beverage ingredients: sugar, salt, spices, coffee, milk powder, seasoning powders, grains, and small granular products.
- Daily chemical and personal care: detergent powders, bath salts, cosmetic powders, and trial/sample sachets.
- Pharmaceutical and health-related products: non-sterile powders and granules requiring consistent bag length, stable sealing, and neat cutting for sachet applications.
- Chemical and industrial materials: fine powders and granules packed in paper/plastic films for retail packs or distribution-ready pouches.
- Liquid or semi-liquid packaging scenarios: compatible setups where controlled sealing temperature and stable film handling are essential to maintain seal reliability.
