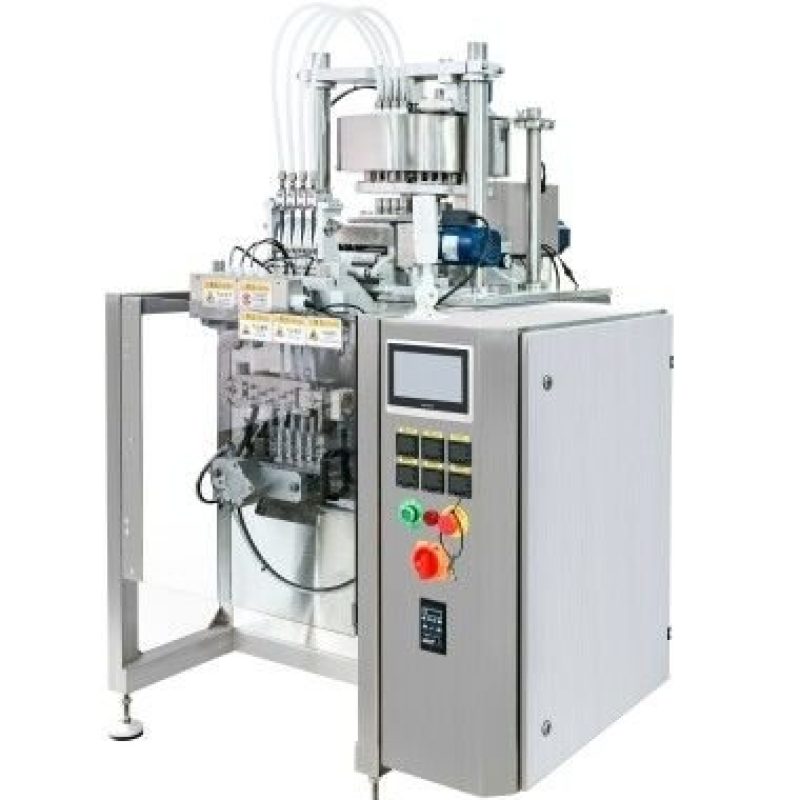

High-Precision Snus Pouch Packaging Machine
Engineered for stable, high-throughput snus production, this high-precision snus pouch packaging machine integrates dosing, forming, filling, and heat sealing into one streamlined workflow. Built for industrial continuity, it combines a robust stainless-steel frame with PLC control and a responsive 7-inch touch screen, enabling manufacturers to maintain consistent pouch shape, weight control, and sealing integrity across long shifts. The machine produces a clean “no pattern on the back” pouch style with left-and-right side sealing, delivering a uniform, retail-ready appearance that supports brand standardization. With a 3 kW power configuration, multi-column capability, and dual voltage compatibility, it is designed to fit both fast-growing facilities and established packaging lines where reliability, hygiene, and efficient material use are key priorities.
From film feeding and pouch forming to metered filling and final sealing, each module is coordinated for repeatability and reduced downtime. The result is a packaging solution that helps lower rework rates, improve product presentation, and support scalable output without adding complexity for operators.
Product Features
Consistent dosing with material-efficient backflow metering: The measuring cup backflow metering system is designed to deliver repeatable pouch weights with measuring accuracy of ≤±10%. The backflow structure helps return excess material to the dosing path, supporting better material utilization, steadier feeding, and a cleaner production environment during continuous operation.
Professional pouch appearance with secure side seals: The “no pattern on the back” pouch format with left and right sealing provides a neat, standardized look while reducing leakage risk. Defined sealing widths (longitudinal 4 mm; transverse 5 mm) help maintain stable closure performance during handling, storage, and transport.
Hygienic, corrosion-resistant stainless-steel construction: Food-grade stainless steel supports easy wipe-down and routine sanitation, making it suitable for oral tobacco packaging requirements. The rigid structure helps keep film travel, forming, and sealing alignment stable, improving repeatability and minimizing film tracking issues.
High-capacity multi-column output: The machine supports efficient scale-up through four-column operation. With 30–45 bags/min per column, it provides strong throughput potential while keeping process control consistent—ideal for factories aiming to expand capacity without proportionally increasing labor.
Operator-friendly PLC control with touch interface: PLC architecture and a 7-inch touch screen simplify parameter setup, production monitoring, and routine adjustment. Clear on-screen operation improves usability, reduces training time, and helps standardize shift-to-shift operation.
Flexible electrical integration for global deployment: Dual voltage options (220V/380V) make commissioning easier across regional power standards. A bilingual interface (English/Chinese) supports mixed-language operator teams and export-oriented production environments.
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Snus pouch packaging machine |
| Packaging Type | Pouch |
| Filling Type | Measuring Cup Backflow Metering |
| Measuring Accuracy | ≤±10% |
| Sealing Form | No pattern on the back; left and right sealed |
| Sealing Width | Longitudinal: 4 mm; Transverse: 5 mm |
| Packaging Film Width | 120 mm |
| Packaging Speed | 30–45 bags/min (single column) × 4 columns |
| Control System | PLC |
| Touch Screen | 7 inch |
| Voltage | 220V / 380V |
| Power | 3 kW |
| Machine Material | Stainless steel |
| Machine Dimensions (L×W×H) | 1200 × 800 × 1800 mm |
| Net Weight | 500 kg |
| Interface Language | English / Chinese |
Application Fields
Oral tobacco and snus manufacturing: Designed for automated packaging of snus portions where stable dosing, consistent pouch formatting, and reliable sealing are essential for shelf stability and consumer experience.
High-volume pouch packing lines: Suitable for plants targeting higher output through multi-column packaging while maintaining controllable sealing quality and standardized pouch appearance.
Contract packaging and private-label production: A practical choice for co-packers handling multiple SKUs that require repeatable dosing performance, fast operator adjustment, and consistent pack presentation.
Export-oriented production sites: Voltage flexibility and bilingual operation make it well suited for international projects, mixed-language teams, and factories supplying multiple markets.
