Product Introduction

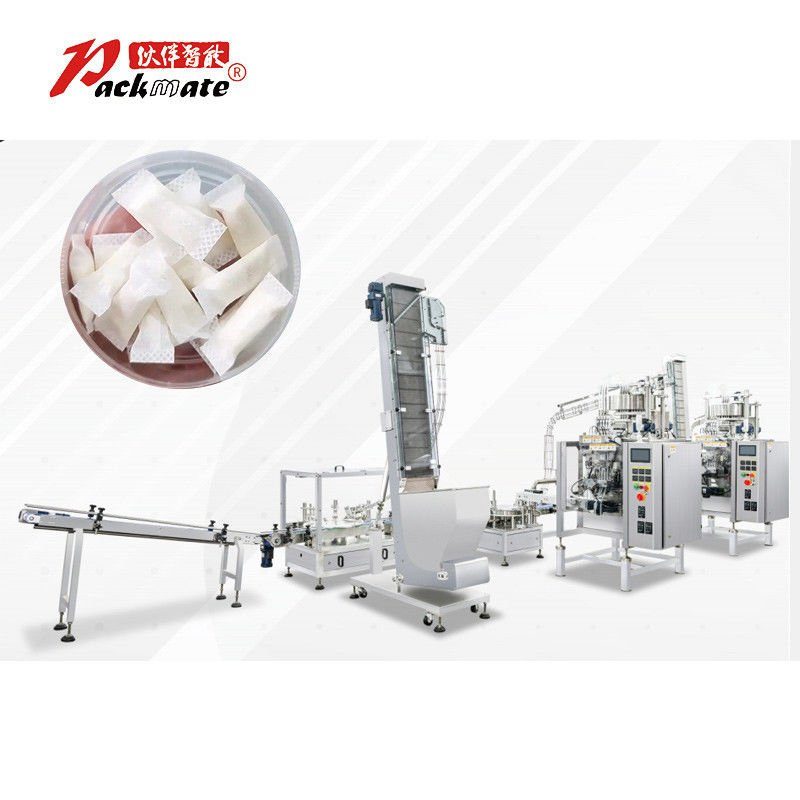

The Pack Mate M180L4-SYB is a double high-speed, single-lane automatic snus pouch packaging machine engineered for clean, stable, and continuous portion production. Designed for modern snus pouch formats, it combines dosing, pouch forming, filling, and heat sealing into one integrated system, enabling manufacturers to produce uniform pouches with minimal operator involvement. A compact machine footprint supports efficient line layout, while the industrial stainless-steel construction (304 SUS standard, 316 SUS optional) helps meet demanding hygiene expectations in regulated or high-throughput environments. Built around a Measuring Cup Backflow Metering system and a PLC + touch-screen control platform, the M180L4-SYB focuses on repeatable micro-dosing accuracy for fine granules and powder, supporting consistent product presentation, stable weight control, and reliable day-to-day operation.
Product Features
High-speed multi-column performance: Designed for stable output at 30–45 bags/min per column across 4 columns, helping increase daily capacity while maintaining consistent pouch shape and seal integrity.
Precision dosing for fine materials: The measuring-cup backflow metering method enhances portion stability for snus granules and powder, improving weight repeatability and reducing typical losses caused by overflow, dusting, or uneven feeding at higher speeds.
Clean heat sealing and neat pouch finish: Heat sealing with a left-and-right sealed structure (no back pattern) delivers a tidy pouch appearance and dependable closure, supporting freshness, transport durability, and lower contamination risk.
Hygienic stainless-steel construction: Contact and frame components are built for long service life and easier cleaning. Optional 316 SUS is available for facilities that require enhanced corrosion resistance or stricter material standards.
User-friendly PLC operation: A PLC control system paired with a 7-inch touch screen enables fast parameter setting, speed adjustment, and production monitoring—reducing training time and supporting consistent shift-to-shift operation.
Electrical adaptability for global deployment: Dual voltage compatibility (220V/380V) supports smoother installation in different regions and simplifies factory integration.
Space-efficient integration: The practical overall dimensions make the unit suitable for new lines or upgrades, helping connect upstream feeding and downstream handling without excessive floor-space requirements.
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | High-Speed Automatic Snus Pouch Packaging Machine (Single Lane) |
| Model | M180L4-SYB |
| Control System | PLC + Touch Screen |
| Touch Screen | 7 inch |
| Filling Type | Measuring Cup Backflow Metering |
| Packaging Type | Pouch |
| Applicable Materials | Snus granules and powder (as per sample) |
| Bag Weight Range | 0.4–0.6 g/bag |
| Packaging Film Width | 120 mm |
| Sealing Type | Heat sealing |
| Sealing Form | No pattern on the back; left and right sealed |
| Packaging Speed | 30–45 bags/min (single column) × 4 columns |
| Machine Material | Stainless steel (304/316 SUS) |
| Power Supply | 220V / 380V |
| Installed Power | 3 kW |
| Dimensions (L×W×H) | 1200 × 800 × 1800 mm |
Product Application Areas
The M180L4-SYB is built for portion-style snus production where precise dosing, hygienic construction, and dependable sealing are essential. It is suitable for high-speed manufacturing of snus granules and snus powder, contract packaging operations seeking consistent pouch appearance and weight repeatability, and production facilities upgrading from semi-automatic processes to a fully automated form-fill-seal workflow. The machine is especially well-matched to operations that require stable multi-column throughput, stainless-steel design for cleanliness and durability, and simple touch-screen control for long-run, high-consistency pouch production.
