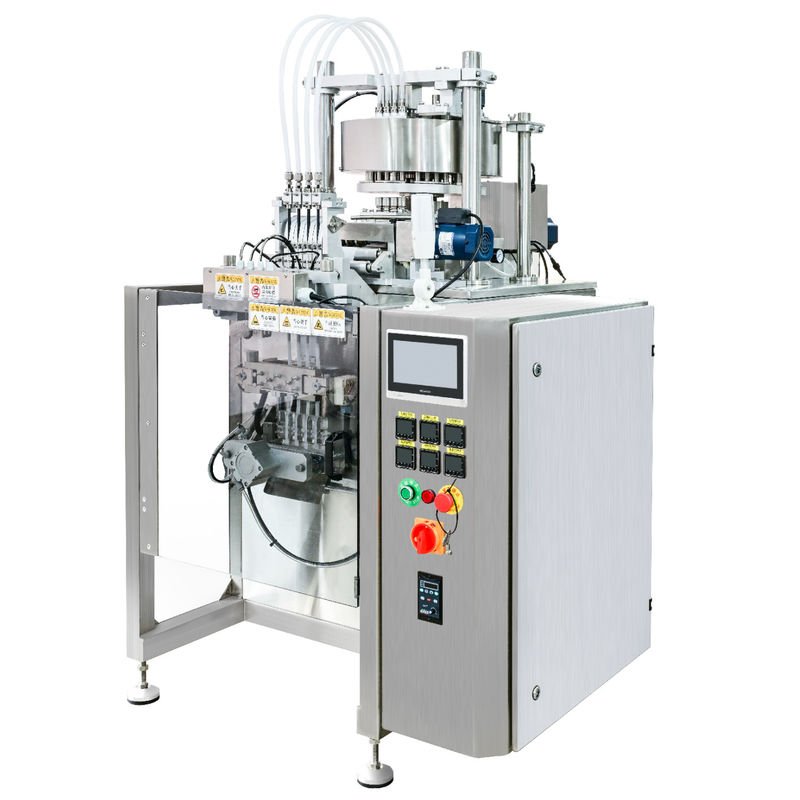

The High-Speed Pouch Packing Machine is an automatic double single-lane packaging system developed for precision dosing and continuous, stable pouch production. It is purpose-built for snus, granules, and free-flowing powders that require small-dose portioning, clean handling, and reliable sealing. By integrating film feeding, pouch forming, metering, filling, and heat sealing into one compact unit, the machine delivers uniform, professional-looking pouches while helping manufacturers improve throughput, reduce operator dependency, and minimize material loss. A PLC-driven control architecture paired with a 7-inch touch screen enables quick setup, clear status monitoring, and repeatable production performance, making the equipment a dependable choice for industrial environments where consistency and uptime are critical.
Product Introduction
Designed for fast-paced production lines, this machine forms and seals left-and-right side pouches with a clean, pattern-free back appearance. The measuring-cup backflow metering system supports stable filling and improved portion repeatability, especially for small target weights. With stainless-steel construction and a straightforward control interface, it meets the practical requirements of hygienic operation, efficient maintenance, and long-term mechanical durability. Dual power supply compatibility (220V/380V) further simplifies deployment across different plant standards and regions.
Product Features
High-output multi-column production: Built for speed and stability, the system delivers 30–45 bags per minute per lane, and supports multi-column operation (up to 4 columns) to significantly increase total output while maintaining consistent pouch geometry and seal quality.
Repeatable micro-dose filling: The measuring cup backflow metering method helps achieve accurate, consistent dosing in the 0.4–0.6 g range, reducing fluctuations in fill weight and limiting overflow or product scattering during dispensing.
Strong, reliable heat sealing: Heat sealing produces secure closures that help protect freshness and reduce leakage risk during storage, handling, and transport. The sealing layout creates left and right sealed pouches with a neat back finish (no rear pattern), supporting a clean and premium presentation.
Stainless-steel hygienic structure: The stainless-steel body is engineered for demanding factory conditions, supporting sanitation-focused production and enhanced corrosion resistance, while also improving long-term stability and service life.
Operator-friendly control and fast changeover: A PLC control system with a 7-inch HMI enables intuitive parameter adjustment, real-time monitoring, and efficient production management, supporting faster startup and reduced training time for operators.
Flexible electrical compatibility: With 220V and 380V options, the machine adapts easily to common industrial power configurations, simplifying installation and reducing the need for additional electrical modifications.
Technical Specifications
| Item | Specification |
|---|---|
| Machine Type | Automatic double single-lane pouch packing machine |
| HMI / Touch Screen | 7 inch |
| Filling Type | Measuring cup backflow metering |
| Packaging Type | Pouch |
| Sealing Type | Heat sealing |
| Sealing Form | No pattern on the back; left and right sealed |
| Packaging Film Width | 120 mm |
| Dose / Bag | 0.4–0.6 g per bag |
| Packaging Speed | 30–45 bags/min (single column) × 4 columns |
| Material | Stainless steel |
| Power Supply | 220V / 380V |
| Installed Power | 3 kW |
| Machine Dimensions (L×W×H) | 1200 × 800 × 1800 mm |
Application Areas
Snus pouch packaging: Ideal for dosing and sealing snus particles into portion pouches with consistent fill control and secure seals that help maintain freshness and product integrity.
Granules and free-flowing powders: Well-suited for micro-dose pouch packaging of granular and powder materials where stable metering, clean forming, and dependable sealing are required.
Tobacco and nicotine alternative production lines: Supports scalable, high-uptime manufacturing environments that demand durable stainless-steel equipment, standardized output, and efficient operation.
High-volume pouch-format consumer goods: A practical solution for manufacturers seeking automated forming, filling, and sealing in a compact footprint with simple controls and consistent pouch quality.
