Product Introduction

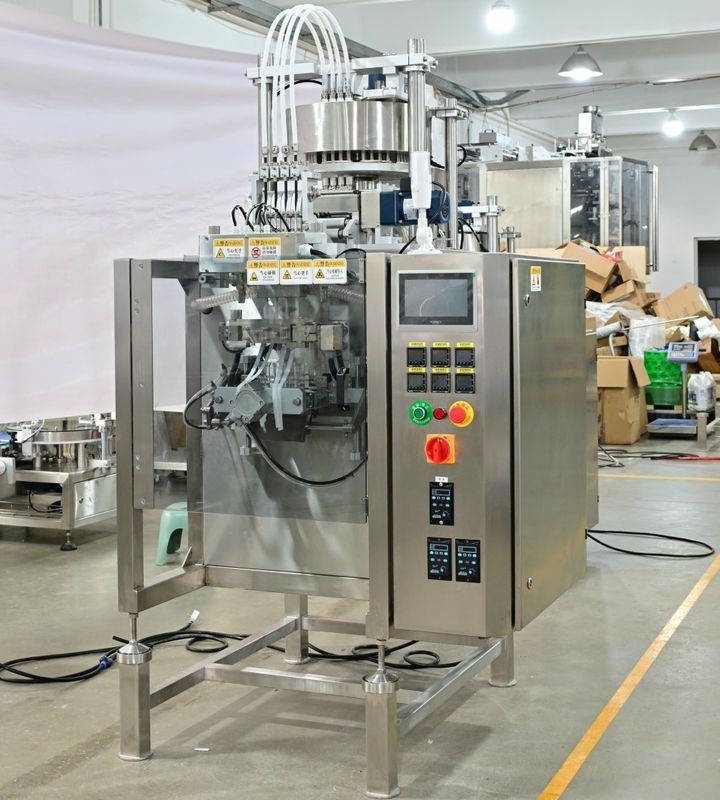

The 4-lane automatic snus packaging machine is engineered for continuous, high-speed packing of wet granules into compact back-sealed pouches. Built on a rigid metal frame with a silver finish, the system forms, fills, seals, and cuts four pouch lanes in parallel to deliver stable output and uniform appearance. Servo-controlled pulling and horizontal sealing help maintain repeatable pouch length and seal integrity during long production runs, while the clean, GMP-oriented material selection supports hygienic operation. With customizable configurations available, this machine is a practical choice for producers who require reliable efficiency, consistent pouch quality, and simplified operation on the shop floor.
Product Features
Four-Lane Parallel Production for Higher Throughput
Four independent lanes operate simultaneously to multiply productivity without sacrificing pouch consistency. Depending on product characteristics and settings, each lane can reach 30–45 pouches per minute, achieving up to 180 pouches per minute total output for fast scale-up.
Neat Back-Seal Pouch Structure with Stable Overlap Sealing
The machine adopts a back sealing design without pattern and a left/right overlap seal structure to create a clean pouch profile suitable for snus-style wet granule packs. Carefully controlled vertical and horizontal sealing widths support reliable closure and uniform edge definition across all lanes.
Small-Dose Filling Control to Reduce Giveaway
Designed for low-weight applications, the dosing system supports 0.4–0.6 g per pouch and targets measurement accuracy of ≤ ±10% (dependent on material condition, flowability, and setup). This helps minimize material giveaway and supports repeatable product standards.
Servo-Driven Pulling and Horizontal Sealing for Repeatability
Horizontal sealing and pouch pulling are servo-controlled (Inovance) to ensure smooth motion, stable positioning, and improved consistency. The result is more reliable pouch length control, reduced variation over time, and better stability during extended shifts.
Food-Contact Safety Materials and GMP-Friendly Build
All product-contact components are made from SUS304 stainless steel and food-grade PTFE to support hygiene and corrosion resistance. The rack, electrical box, and key structural elements are manufactured with SUS304 and/or aluminum alloy to align with GMP-oriented production environments.
Industrial Control System with Clear Alarms and Diagnostics
An Inovance 7-inch color touchscreen paired with an Inovance PLC provides intuitive parameter setting and operational visibility. Built-in prompts and self-diagnostics assist troubleshooting, while film-short detection, safety-door interlock alarms, abnormal-operation alarms, and a three-color tower light enhance production safety and line management.
Cleaner Sealing Zone and Startup Waste Reduction Support
A dust removal device positioned above the horizontal sealing area (vacuum-assisted) helps keep sealing surfaces cleaner, supporting stable seal quality. An automatic waste pouch removal device prepared for debugging improves trial runs and changeover efficiency, helping reduce unnecessary scrap at startup.
Technical Specifications
| Product Type | 4-lane automatic packaging machine for wet granules (back sealing) |
| Applicable Material | Wet particles / wet granules (validated by sample) |
| Number of Lanes | 4 lanes |
| Packaging Capacity | 0.4–0.6 g per pouch |
| Measurement Accuracy | ≤ ±10% (material and setup dependent) |
| Packaging Speed | ≤ 30–45 pouches/min per lane (× 4 lanes); up to 180 pouches/min overall |
| Pouch Size (Single Lane) | Length: 20–50 mm; Width: 13 mm (non-adjustable) |
| Film Width | Total: 120 mm; Single row film width: 30 mm |
| Sealing Form | Back sealing without pattern; left/right overlap sealing |
| Sealing Width | Vertical: 4 mm; Horizontal: 5 mm (subject to sample pouch drawing) |
| Horizontal Sealing Pattern | No-vein or net-vein options; 2 sets of heat sealers |
| Vertical Sealing Pattern | No-vein or net-vein options; 2 sets of heat sealers |
| Cutting Method | Flat cutting and serrated cutting; 2 sets of cutting knives |
| Packaging Film Material | Composite films (e.g., BOPP/PE) |
| Power Supply | AC 220V / 50Hz, 3.5 kW |
| Air Consumption | 0.6–0.8 MPa, 2.5–3 m³/min (reference; depends on application) |
| Machine Material / Color | Metal construction, silver |
| Control System | Inovance 7" color touchscreen + Inovance PLC |
| Temperature Control | 6-channel Omron temperature controller |
| Pneumatic Components | Taiwan Airtac |
| Electrical Components | Schneider or OMRON |
| Film Feeding | Gravity-driven active film feeding |
| Deviation Correction | Manual deviation correction system |
| Safety | Safety door switch (Panasonic door safety switch), alarm tower light |
| Dust Removal | Above horizontal seal, with vacuum cleaner |
| Photoelectric Function | None |
| Packaging | Wooden case |
| Minimum Order Quantity | 1 set |
| Customization | Customized configurations available |
| Operating Language | English (customizable); PLC interface as configured |
Application Areas
Snus and Nicotine Pouch Manufacturing
Optimized for packing snus-style wet granules into small-format pouches, delivering controlled back sealing, consistent cutting, and stable multi-lane output for high-volume production.
Wet Granule Sachets for Consumer and Industrial Products
Suitable for a wide range of wet particle or wet granule materials that meet sample-based handling requirements, especially applications demanding compact pouch dimensions, clean appearance, and efficient four-lane production.
