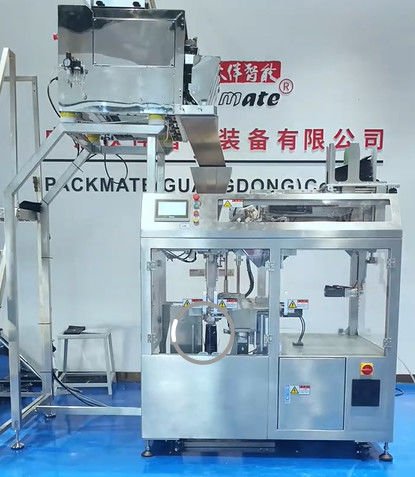

The High-Speed Vertical Automatic Packaging Machine is designed for reliable, high-throughput packing of premade bags where consistent sealing, precise positioning, and fast changeover are essential. Built on an independent multi-axis servo drive platform with an intuitive touch-screen HMI, the system integrates accurate motion control, stable temperature regulation, and dependable pneumatic actuation to support continuous production with repeatable pack quality. Whether used as a standalone unit or integrated into an automated line, it helps manufacturers improve output efficiency, reduce sealing defects, and simplify daily operation and specification switching.
Product Introduction
This vertical premade-bag packaging solution combines servo-driven mechanisms, real-time monitoring, and industrial-grade components to deliver stable operation at production speeds. The machine is optimized for modern flexible packaging workflows, supporting common laminated structures and aluminum-based films. With clear status prompts on the HMI and well-referenced adjustment points, operators can maintain steady performance while shortening learning curves and minimizing downtime caused by setup errors or inconsistent manual adjustments.
Engineered for repeatability, the machine focuses on three key outcomes: smooth high-speed running, reliable bag handling, and consistent sealing integrity. From bag positioning through final sealing, each action is controlled to reduce vibration, drift, and temperature fluctuation—helping maintain a clean pack appearance and dependable seal strength across shifts and operators.
Product Features
Independent multi-axis servo drive for accurate motion control: A multi-axis servo architecture provides fast response and precise positioning, maintaining consistent cycle timing at higher speeds and improving overall running smoothness.
Stable high-output operation with servo control reliability: Using KOSSI servo motors, the machine enhances stability during continuous high-speed production, helping reduce mechanical drift and supporting long, uninterrupted runs.
Operator-friendly touch-screen HMI with real-time prompts: The interface displays parameter settings and live status notifications (such as material presence and bagging conditions), enabling quicker troubleshooting and reducing unplanned downtime.
Fast, repeatable format changeover: Key adjustment locations are marked with clear angle references (including turntable angle indicators), allowing faster specification switching and consistent setup results between different operators.
Consistent sealing backed by tight temperature control: An Autonics temperature control module maintains stable heating performance with deviation controlled within ±1°C, improving seal integrity and minimizing defects across different film structures.
Durable component selection for long service life: Pneumatic components use Taiwan AIRTAC, while bearings use Japan NSK, supporting dependable performance, low wear, and reduced maintenance frequency under industrial operation.
Convenient corner positioning adjustment: Corner alignment is adjusted through an EASUN rotary cylinder, improving bag positioning accuracy and enhancing finished pack appearance.
Technical Specification Parameters
| Speed | 10–40 packets/min |
| Packaging Size (Premade Bag) | Bag length: 180–280 mm; Bag width: 50–150 mm; Bag height: 40–100 mm (based on customer sample bag) |
| Total Power | 8 kW |
| Air Pressure / Consumption | 6 kg/cm² (about 600 L/min) |
| Power Supply | 220 V / 50 Hz |
| Machine Dimensions (L × W × H) | 1420 × 988 × 1500 mm |
| Machine Weight | 650 kg |
| Supported Packaging Materials | OPP/CPP, PT/PE, KOP/CPP aluminized film, aluminum film |
Application Fields
This vertical automatic premade-bag packaging machine is suited for operations that require stable sealing and efficient bag handling across laminated films and aluminum-based materials. It is commonly applied in flexible packaging lines for consumer goods and daily necessities, industrial consumables, and other products supplied in premade bags. For manufacturers focused on throughput, consistency, and repeatability, the machine provides a practical solution for maintaining pack appearance and seal quality while supporting fast changeovers and long production runs.
