Product Introduction

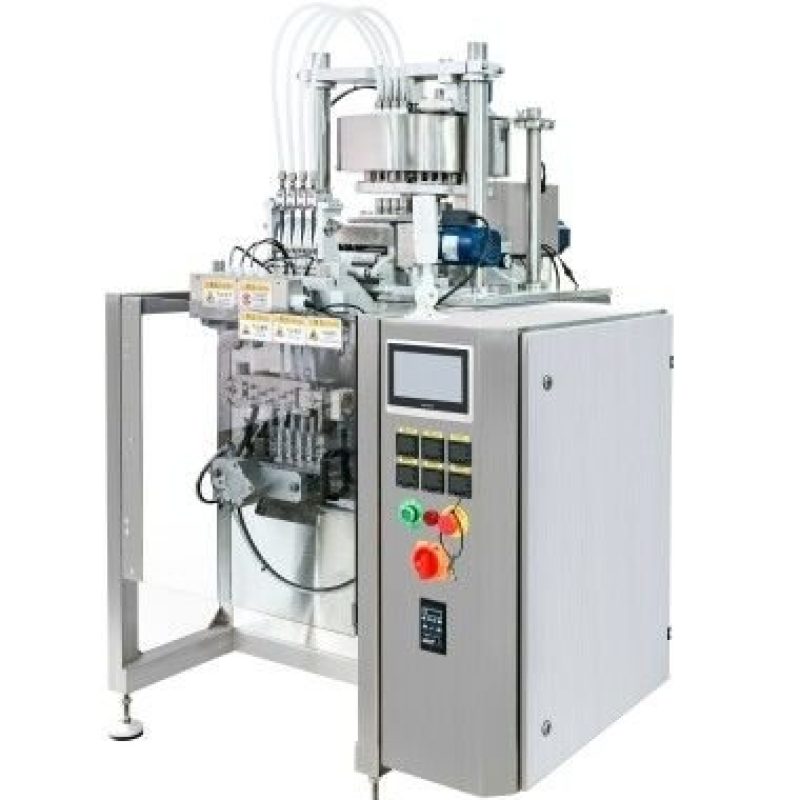

The 220V/380V Snus Automatic Packing Machine is a fully automatic pouch packaging system developed for stable, long-run production of snus particles (as per sample). It combines pouch forming, precision dosing, filling, and heat sealing in one continuous workflow to produce neat, uniform pouches with dependable seal quality. With a compact footprint of 1200 × 800 × 1800 mm and a durable 304 stainless-steel construction, this machine helps manufacturers standardize pouch appearance, improve throughput consistency, and minimize manual intervention while supporting freshness protection through reliable heat-sealed closures.
Product Features
Integrated Form–Fill–Seal for Streamlined Production
By integrating forming, metering, filling, and sealing into a single automated process, the machine reduces handling steps and operator dependence. This streamlined structure supports continuous output and consistent pouch geometry, helping maintain a clean presentation and reducing rework caused by unstable packaging performance.
Stable Metering with Measuring Cup Backflow System
The measuring cup backflow metering unit is designed for smooth transfer and repeatable dosing of snus particles. With a measuring accuracy of ≤ ±10%, the system supports consistent fill performance for standard snus pouch requirements, improving batch-to-batch uniformity and helping control material usage during daily operation.
Heat Sealing Designed for Freshness Protection
Heat sealing creates firm, durable closures that support leak resistance during conveying, storage, and distribution. The sealing design features a clean finish with no pattern on the back and left/right sealing, delivering a professional look while enhancing package integrity for freshness-sensitive products.
PLC Automation + 7-Inch Touchscreen for Easy Control
A PLC control architecture delivers stable automation and repeatable process control. The 7-inch HMI touch screen enables fast parameter setting, real-time monitoring, and convenient troubleshooting. English/Chinese bilingual support simplifies training and makes the machine practical for international production teams and mixed-language workshops.
High-Efficiency Output with Multi-Column Capability
The system supports a packaging speed of 30–45 bags/min (single column) × 4 columns, enabling efficient mass production while maintaining consistent forming and sealing. This productivity-focused design is suitable for plants aiming to scale output without sacrificing pouch uniformity and seal reliability.
Practical Power Configuration and Compact Footprint
Supporting both 220V and 380V power options with a 3 kW rated power, the machine is adaptable to different factory utilities. The compact machine size supports space-efficient layout planning, and the 120 mm packaging film width capability aligns with common snus pouch formats, helping standardize material selection and routine purchasing.
Hygienic, Durable 304 Stainless-Steel Construction
The main construction uses 304 stainless steel, offering corrosion resistance and easier cleaning for daily production environments. This robust build supports long-term mechanical stability and helps maintain a clean packaging process in demanding factory conditions.
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Snus Automatic Packing Machine (Pouch Packaging) |
| Applicable Material | Snus Particles (as per sample) |
| Control System | PLC |
| HMI | 7-inch Touch Screen |
| Language | English / Chinese |
| Filling Type | Measuring Cup Backflow Metering |
| Measuring Accuracy | ≤ ±10% |
| Packaging Film Width | 120 mm |
| Packaging Capacity | 0.4–0.6 g/bag |
| Packaging Speed | 30–45 bags/min (single column) × 4 columns |
| Sealing Type | Heat Sealing |
| Sealing Form | No pattern on the back, left and right sealed |
| Sealing Width | Longitudinal: 4 mm; Transverse: 5 mm |
| Power | 3 kW |
| Voltage Options | 220V / 380V |
| Machine Dimensions (L×W×H) | 1200 × 800 × 1800 mm |
| Machine Weight | 500 kg |
| Main Construction / Packaging Details | 304 Stainless Steel |
Application Fields
Snus and Smokeless Tobacco Pouch Packaging
Suitable for manufacturers producing snus pouches that require stable dosing, consistent pouch appearance, and dependable heat sealing for shipment-ready packaging. It supports continuous production where sealing integrity and repeatability are essential for brand consistency.
Contract Packaging, Co-Packing, and OEM/ODM Production
Well-suited for co-packers and OEM/ODM facilities handling multiple snus formulations and production schedules. User-friendly controls, reliable automation, and repeatable metering help maintain steady daily output while supporting practical operation across different teams and shifts.
Scale-Up Manufacturing and Industrial Production Lines
Designed for integration into modern production environments focused on automation and efficiency. The machine supports scalable output with consistent sealing quality, helping reduce labor intensity, improve throughput stability, and maintain standardized pouch presentation across high-volume runs.
