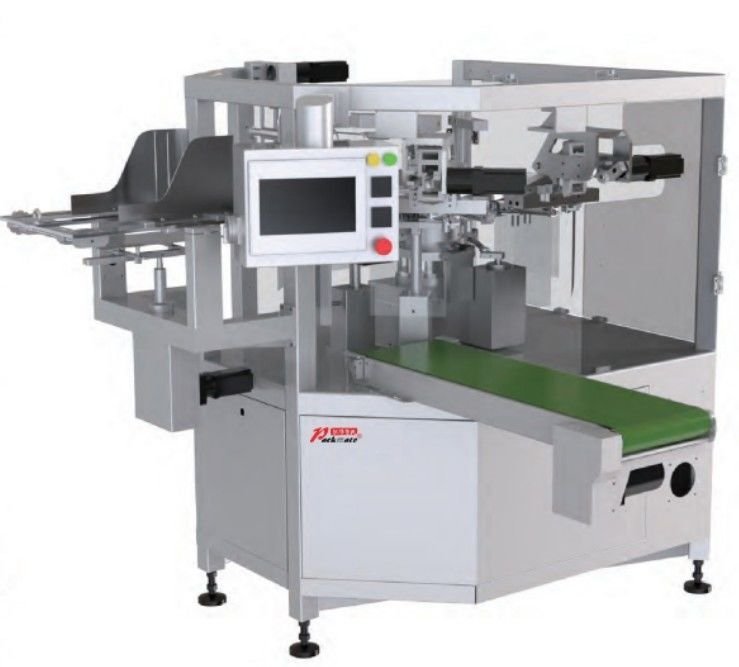

The Automatic Granule Packaging Machine is a high-efficiency rotary premade-pouch packing system engineered for fast, stable, and hygienic packaging of free-flowing granules. Built around an 8-station intermittent rotary workflow, it integrates bag feeding, opening, filling, dust control assistance, sealing, and discharge into one coordinated cycle—delivering consistent bag presentation and reliable seal quality for both food and non-food applications. For full automation, the machine can be matched with an optional Z-Type Bucket Conveyor to realize continuous material lifting, steady feeding, and cleaner production through integrated dust/sand/iron removal functions.
Product Introduction
Designed for modern production lines that demand speed, flexibility, and repeatable quality, this rotary premade-bag solution supports a wide range of pouch formats such as flat bags, stand-up pouches, zipper bags, and M-type bags. Its controlled rotary motion and station-by-station synchronization help maintain stable operation at high throughput, while precise temperature management and coordinated sealing action enhance package integrity across different bag materials. The electrical and pneumatic architecture adopts industrial-grade components to improve uptime, simplify troubleshooting, and support long-term continuous running.
When combined with the optional Z-type conveyor, the system becomes a complete granule packaging line: product is lifted from a hopper, conveyed upward in buckets, and delivered at a regulated rate to match packaging speed. This reduces manual handling, minimizes spillage, and supports cleaner feeding—especially helpful for dusty, sandy, or mixed granules.
Product Features
High-speed rotary performance: An optimized 8-station rotary cycle supports production speeds up to 72 bags/min, enabling high-volume output while maintaining consistent process timing and repeatability.
Broad premade-bag compatibility: Handles multiple pouch styles—including flat, stand-up, zipper, and M-type—helping manufacturers switch products or upgrade packaging formats without frequent machine replacement.
Reliable sealing with process stability: Controlled sealing temperature and coordinated actuation improve seal strength and appearance across single PE, composite films, paper films, and multi-layer laminates, reducing leakage risk and rework.
Industrial electrical configuration: Key control and safety positions utilize well-known component brands for stable performance, clearer maintenance logic, and improved long-term uptime in demanding production environments.
Automation-ready feeding integration: The optional Z-type bucket conveyor with variable-frequency speed regulation delivers steady, adjustable feeding to match packaging rhythm and reduce overfeed, underfeed, and spillage.
Cleaner, more durable material handling: The optional conveyor is manufactured in 304 stainless steel and includes dust/sand/iron removal functions, supporting cleaner production and reducing wear or contamination risks.

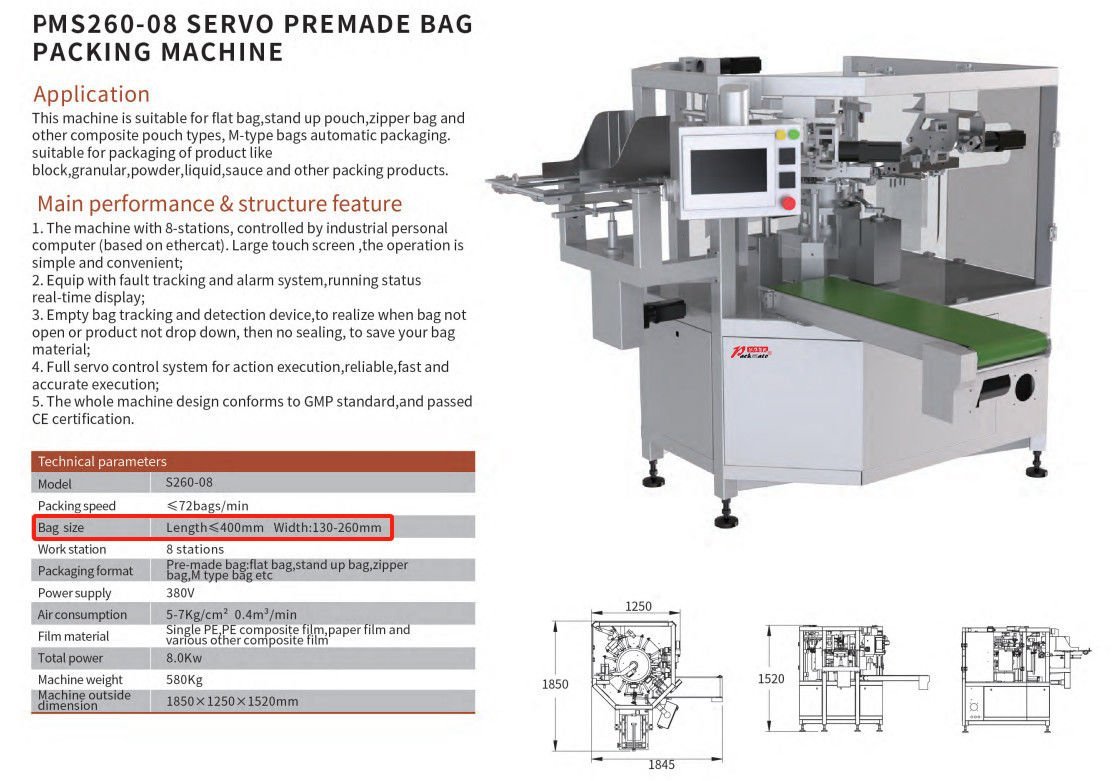

Technical Specifications
| Rotary Premade-Bag Packaging Machine | |
| Packing Speed | ≤ 72 bags/min |
| Bag Size Range | Length ≤ 40 cm; Width ≤ 26 cm |
| Work Stations | 8 stations |
| Packaging Format | Premade bag: flat bag, stand-up bag, zipper bag, M-type bag, etc. |
| Film/Bag Material Compatibility | Single PE, PE composite film, paper film, and various composite films |
| Power Supply | 380 V |
| Total Power | 8 kW |
| Air Consumption | 5–7 kg/cm²; 0.4 m³/min |
| Machine Weight | 580 kg |
| Overall Dimensions (L×W×H) | 185 × 125 × 152 cm |
| Main Components (Brands) |
Relay system / safety door: Omron Start/stop/emergency stop buttons/indicator light: Schneider Circuit breaker: Chint Temperature controller: Yuyao PLC: Qichuang Touch screen: Kunlun Tongtai Switching power supply: Taiwan MeanWell Servo motor: Huichuan Reducer: Xinbao Cylinder: AirTac |
| Z-Type Bucket Conveyor (Optional Feeding System) | |
| Conveying Capacity | 0–10 m³/h |
| Bucket Type / Capacity | Z-type buckets, 3.8 L per bucket |
| Hopper Volume | 120 L |
| Drive | Worm gear reduction motor (installed on upper side of conveyor) |
| Functions | Dust, sand, and iron removal |
| Control | Control box with variable-frequency speed regulation |
| Material | 304 stainless steel |
| Total Power | 1500 W |
| Power Supply | Single-phase 220 V / 50 Hz |
| Total Weight | 300 kg |
Product Application Areas
Food processing: Suitable for packing snack granules, nuts, seeds, sugar, salt, coffee beans, tea granules, cereal mixes, dehydrated foods, spices, seasonings, and other free-flowing edible granules into premade pouches with clean appearance and dependable seals.
Home & personal care: Ideal for laundry scent beads, bath salts, fragrance granules, desiccant-related granule fillers, and similar products where neat pouch presentation and stable sealing quality are required.
Agriculture & pet products: Works for seeds, small feed pellets, pet treats, and specialty granules that benefit from steady filling, consistent bag shape, and repeatable production output.
Industrial granules: Applicable to plastic pellets, rubber granules, and other non-food granular materials packaged in flat or stand-up premade bags for distribution, warehousing, and retail channels.
